Door Components, Outer Door Seal

Outer Door Seal

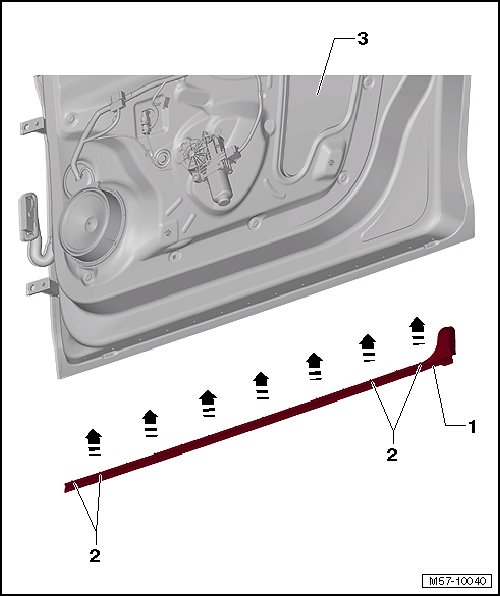

• The following describes removing and installing the right outer door seal only. Removing and installing the left outer door seal is identical.

• Check the clips - 2 - for damage and replace them if necessary.

Removing






- Remove the outer door seal - 1 - and clips - 2 - from the door- 3 -.

Installation






• Replace any damaged clips - 2 -.

- Press the seal - 1 - and clips - 2 - onto the door - 3 - starting at the A-pillar.
