Rear Door Striker: Service and Repair

Striker Pin

• The following describes removing and installing the right striker pin. Removing and installing the left striker pin is identical.

Removing

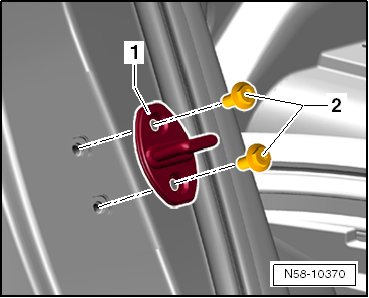

- Remove the bolts - 2 - and the striker pin - 1 -.






Installing

- Position the striker pin - 1 - on the C-pillar and tighten the bolts - 2 -.






Bolt - 2 - tightening specification: 20 Nm

- Adjust the striker pin. Refer to => [ Door Striker Pin, Adjusting ] Door Striker Pin, Adjusting.
