Wiper Control Module: Service and Repair

Rear Window Wiper Blade Park Position, Adjusting

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331)

Procedure

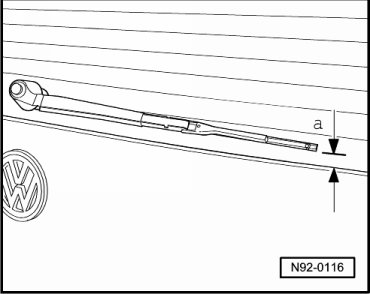

The distance - a - between wiper blade and lower edge of windshield must be 23 mm.






- If necessary, adjust the rear window wiper park position by repositioning the wiper arm.

- Tighten the threaded connections to the tightening specification. Refer to => [ Rear Window Wiper System Overview ] Rear Window Wiper System Overview.
