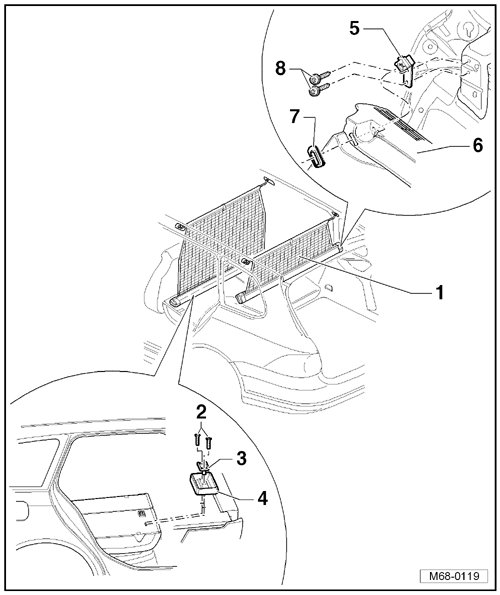

Screen Separator Mounting Component Overview

Screen Separator Mounting Component Overview






1 Screen Separator Wall

• Removing and Installing, refer to => [ Screen Separator Wall ] Screen Separator Wall

2 Bolt

• 8 Nm

3 Screen separator wall mount

4 Mounting piece

5 Screen separator wall bracket

6 Luggage compartment side trim, wagon

• Removing and Installing, refer to => [ Luggage Compartment Side Trim, Wagon ] Luggage Compartment Side Trim, Wagon

7 Collar

8 Bolt

• 8 Nm
