Window Guide Trim Molding

Window Guide Trim Molding

Removing

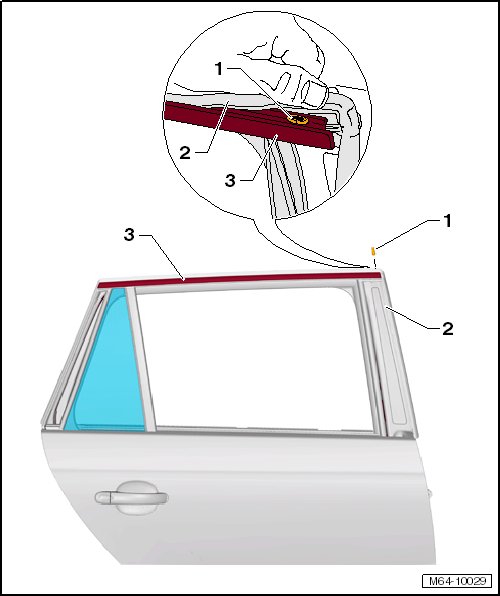

- Pull the front of the window guide - 2 - to the side slightly.

- Remove the expanding rivet - 1 - from the window guide trim molding - 3 -.

- Remove the trim molding - 3 - from the window guide - 2 -.

Installation






- Spray the window guide - 2 - with a soap and water solution.

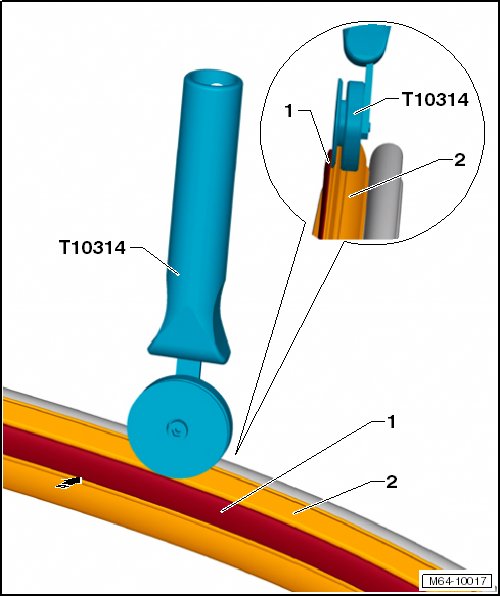

- Press the trim molding - 1 - by hand evenly in the - direction of the arrow - into the window guide - 2 -.

- Then press the trim molding - 1 - into the window guide mount - 2 - using the roller (T 10314).

Further installation is in reverse order of removal.
