Front Door Window Motor: Service and Repair

Window Regulator Motor

Removing

- Remove front door trim.






- Fix window using adhesive tape so that it does not slip down.

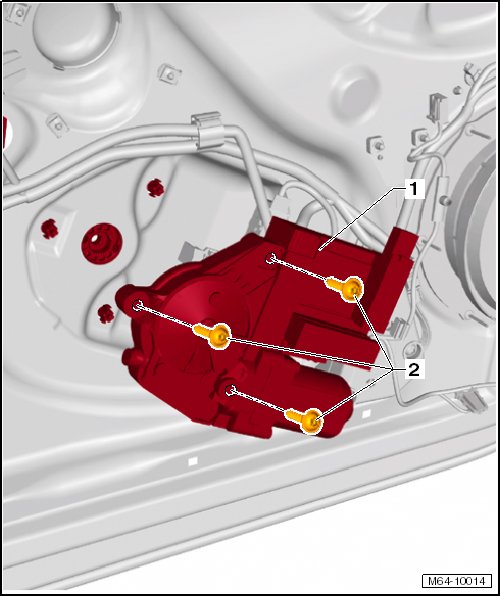

- Remove the three bolts - 2 -.


• Switch ignition and all electrical components off.

• Remove ignition key.

- Disconnect the connector on the window regulator motor with the control module - 1 -.

- Remove the window regulator motor with the control module - 1 - from the door.

Installation


It is necessary to code the additional functions and pinch protection each time a new window regulator motor (door control module) is installed.






- Install the window regulator motor - 1 - and pull door window up and down so that splines are located better between motor and cable drum.

Tightening specification: Bolts - 2 - 3.5 Nm

- Connect the connectors - 3 -.

- A new window regulator motor must be coded.

- Raise and lower the window as far as the stops two times. This initializes the window regulator motor and activates the pinch protection.

- Continue by performing the steps used in removal in reverse order.
