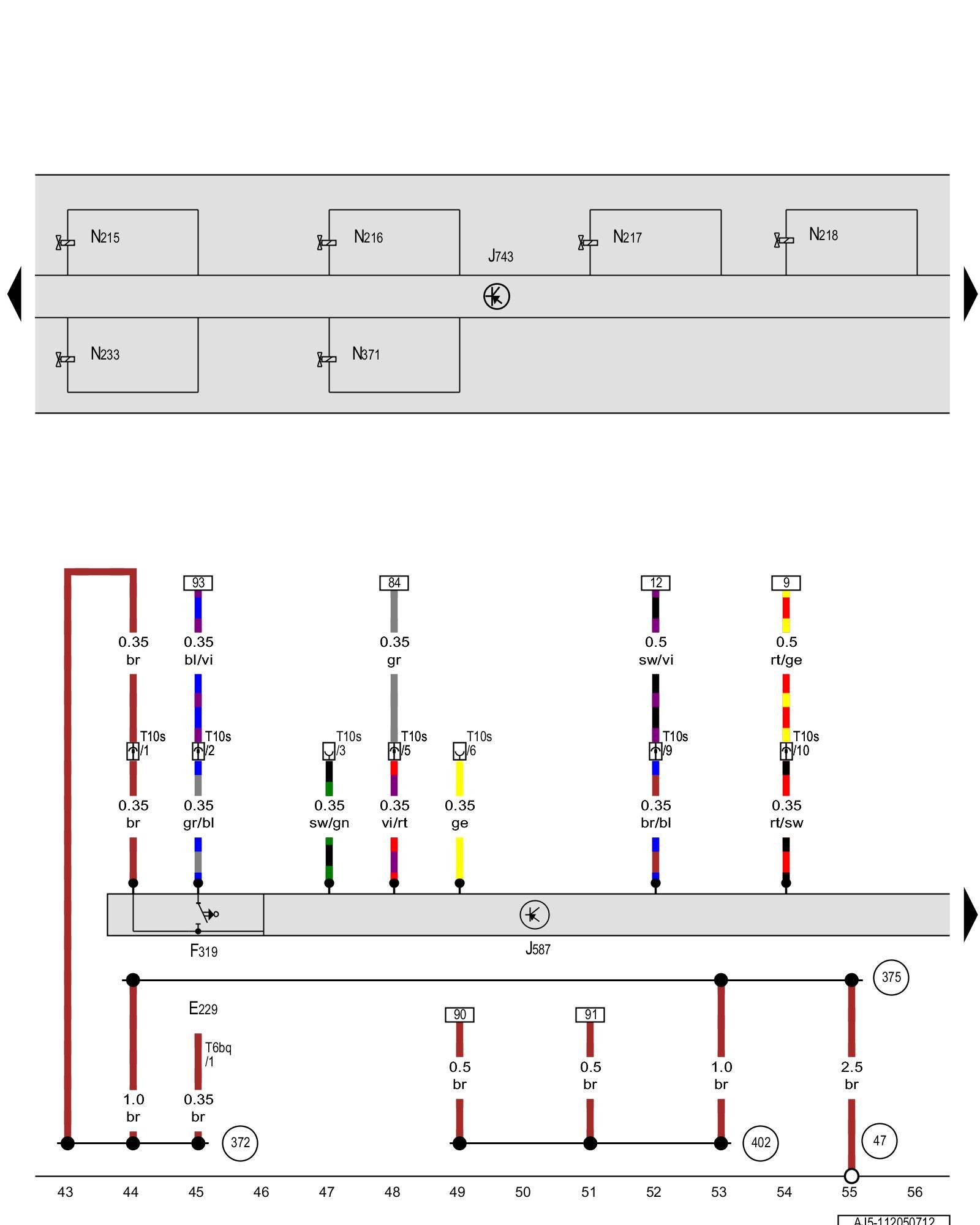

Diagram 112/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Selector lever park position lock switch, Selector lever sensor system control module, DSG transmission Mechatronic, Automatic transmission pressure regulating valve 1, Automatic transmission pressure regulating valve 2, Automatic transmission pressure regulating valve 3, Automatic transmission pressure regulating valve 4, Automatic transmission pressure regulating valve 5, Automatic transmission pressure regulating valve 6





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E229 - Emergency flasher switch

F319 - Selector lever park position lock switch Locations Locations Tiptronic Switch -F189- / Selector Lever -E313- / Selector Lever Park Position Lock Switch -F319-

J587 - Selector lever sensor system control module Locations

J743 - DSG transmission Mechatronic Locations Connector Views

N215 - Automatic transmission pressure regulating valve 1 Locations

N216 - Automatic transmission pressure regulating valve 2 Locations

N217 - Automatic transmission pressure regulating valve 3 Locations

N218 - Automatic transmission pressure regulating valve 4 Locations

N233 - Automatic transmission pressure regulating valve 5 Locations

N371 - Automatic transmission pressure regulating valve 6 Locations

T6bq - 6-pin connector

T10s - 10-pin connector, under the selector lever

(47) - Ground connection in right front footwell Locations

(372) - Ground connection 7 (in main wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(402) - Interior lighting ground connection (in interior wiring harness)
