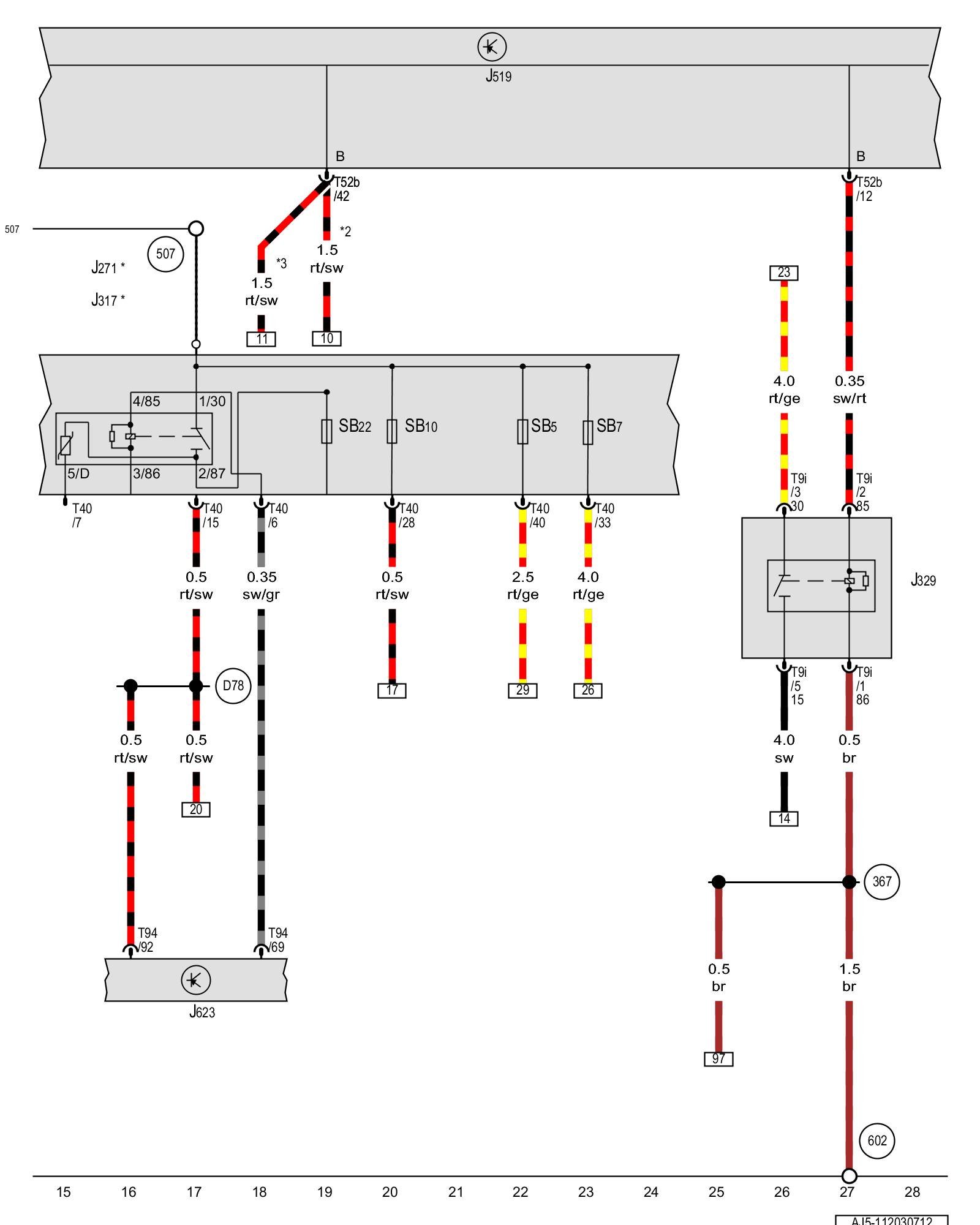

Diagram 112/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic engine control module power supply relay, Terminal 30 power supply relay, Terminal 15 power supply relay, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J271 - Motronic engine control module power supply relay Locations

J317 - Terminal 30 power supply relay

J329 - Terminal 15 power supply relay Locations

J519 - Vehicle electrical system control module Locations

J623 - Engine control module

SB5 - Fuse 5 (on fuse panel B) Locations

SB7 - Fuse 7 (on fuse panel B) Locations

SB10 - Fuse 10 (on fuse panel B) Locations

SB22 - Fuse 22 (on fuse panel B) Locations

T9i - 9-pin connector

T40 - 40-pin connector

T52b - 52-pin connector

T94 - 94-pin connector

(367) - Ground connection 2 (in main wiring harness)

(507) - Terminal 30 threaded connection (on battery fuse holder)

(602) - Ground connection in left front footwell Locations

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - from December 2010

*3 - Through December 2010
