Left Control Arm with Mounting Bracket, DSG and Automatic Transmission

Left Control Arm with Mounting Bracket, DSG and Automatic Transmission

Special tools, testers and auxiliary items required

• Locating pins (T10096)

• Engine/transmission jack (V.A.G 1383 A)

Removing

- Turn the steering wheel to the straight-ahead position and remove the ignition key so that the steering wheel lock engages.

Vehicles with "Keyless Access" Keyless Locking and Starting System

- Switch the ignition off and open the driver's door so the steering wheel lock locks.

Continuation for All Vehicles

- Remove the footwell trim panel - 1 -.






- Remove the bolt - arrow - from the universal joint - 1 -. Then remove the universal joint in - direction of arrow -.






- Remove left front wheel.

- Remove the lower noise insulation.

- Remove exhaust system bracket from subframe - arrows -.






- Remove pendulum support from transmission, unscrew bolts - 14 - to do so.






- Remove the nuts - arrows -.






- Loosen bolt - 12 -.






- Remove the right and left nuts - 1 - from the coupling rods - 3 -.






- Remove the coupling rods - 3 - from the stabilizer bar - 2 -.

- Subframe, securing, refer to => [ Subframe and Consoles, Securing ] Front Suspension.

- Place the (V.A.G 1383 A) under the subframe.






- Place for example a block of wood - 1 - between (V.A.G 1383 A) and subframe.

- Remove bolts - 13 -.






- Remove the bolts - 9 - and - 10 - and lower the subframe as far as necessary.






• Always pay attention to electrical wires for the steering.

- Remove the bolt - 12 -, and remove the control arm from the subframe.






Installing

Install in reverse order of removal.

• Make sure that the ball joint boot is not damaged or twisted.

- Install the lower noise insulation.

- Install the wheel and tighten the wheel bolts. Refer to => [ Wheel Bolt Tightening Specification ] [1][2]Specifications.

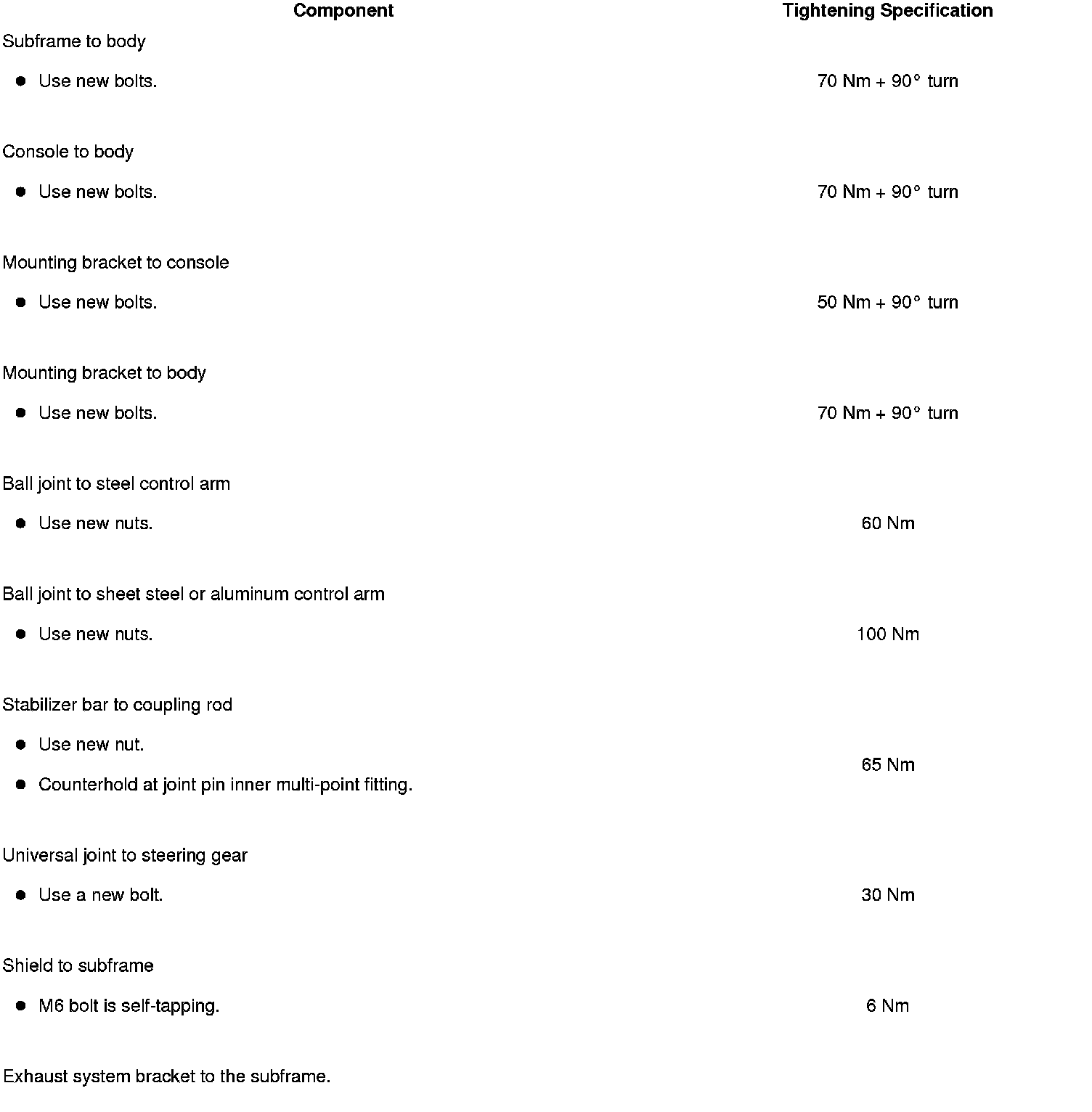

Tightening Specifications

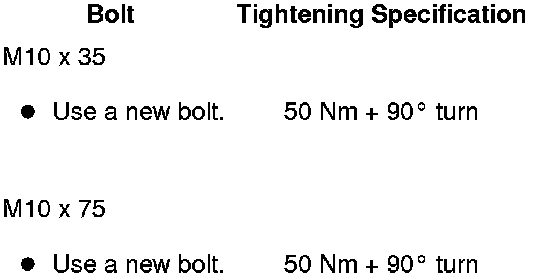

Tightening Specification, Pendulum Support to the Transmission
