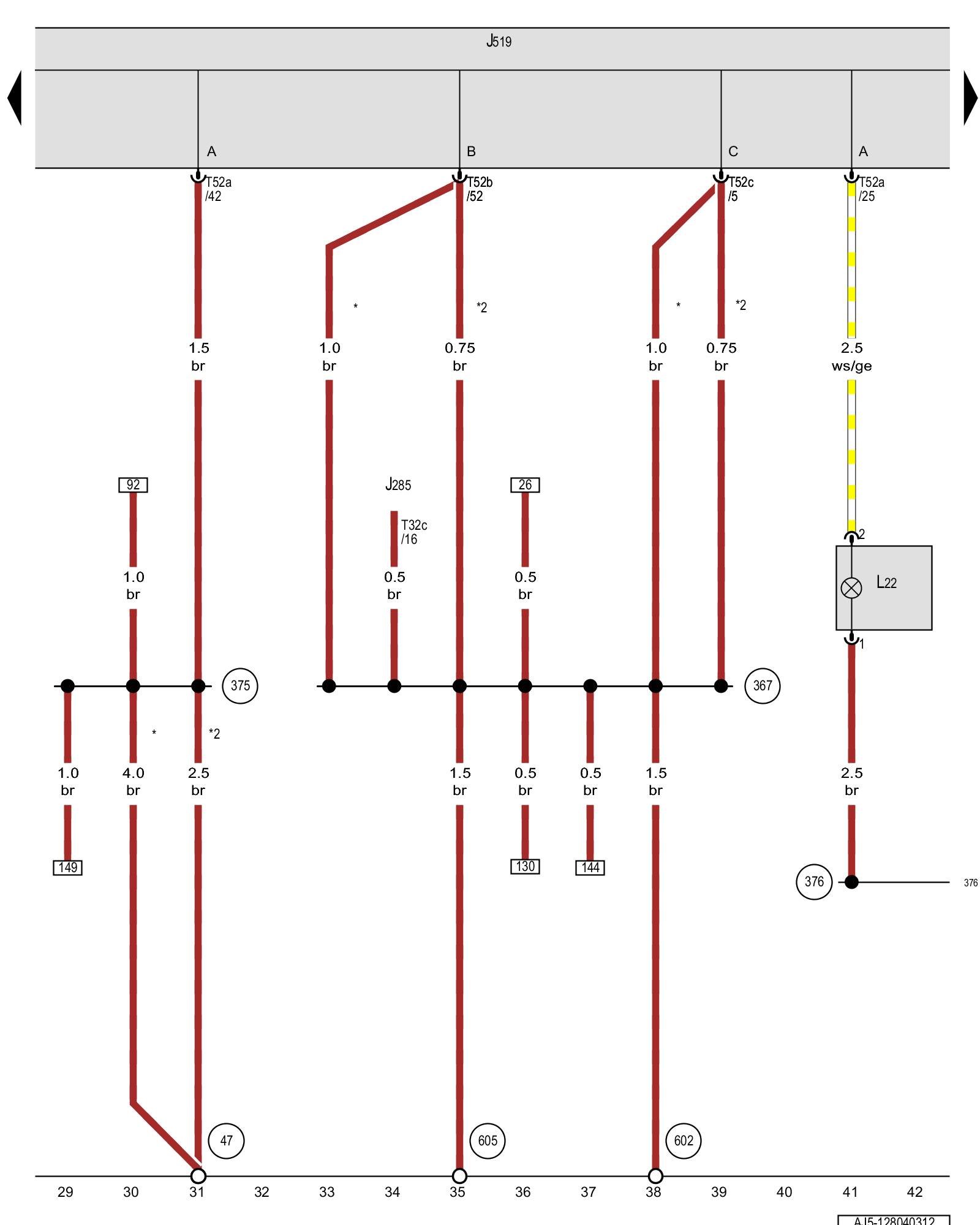

Diagram 128/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Left front fog lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module Locations

L22 - Left front fog lamp bulb

T32c - 32-pin connector

T52a - 52-pin connector

T52b - 52-pin connector

T52c - 52-pin connector

(47) - Ground connection in right front footwell Locations

(367) - Ground connection 2 (in main wiring harness)

(375) - Ground connection 10 (in main wiring harness)

(376) - Ground connection 11 (in main wiring harness)

(602) - Ground connection in left front footwell Locations

(605) - Ground connection on upper steering column Locations

* - from July 2011

*2 - Through June 2011
