Ground Point Inside The Luggage Compartment

Ground Connections

Ground point inside the luggage compartment

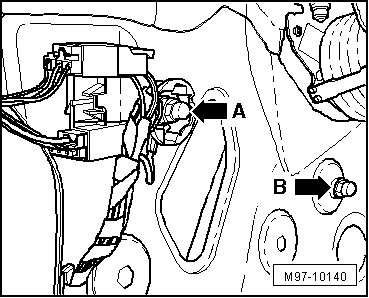

(50) - Ground connection inside the luggage compartment on the left side -arrow A-

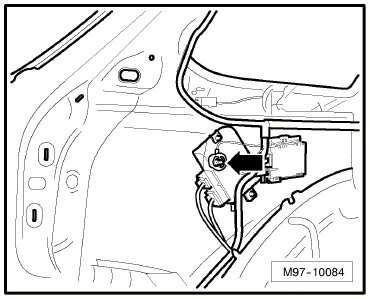

(662) - Ground connection inside the left rear side panel-arrow-

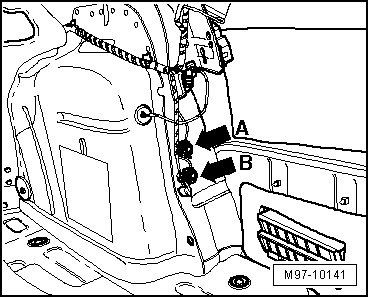

(51) - Ground Connection inside the luggage compartment on the right side -arrow A-
(663) - Ground connection inside the right rear side panel -arrow B-
