Ground Connections In Interior: 801003

Ground Connections

Ground Connections in interior

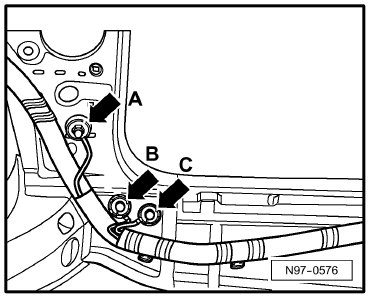

(43) - Ground point on the right A-pillar at the bottom -arrow C-
(47) - Ground point inside the right footwell in the front -arrow B-
(638) - Ground point on the right A-pillar -arrow A-





(44) - Ground connection on the A-pillar at the bottom -arrow B-
(602) - Ground connection inside the left footwell at the front -arrow A-
