Ground Connections In Engine Compartment

Ground Connections

Ground Connections in engine compartment

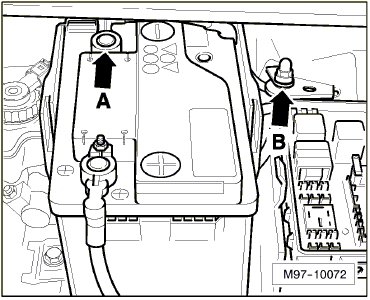

(1) - Ground strap, battery to body -Arrow A-

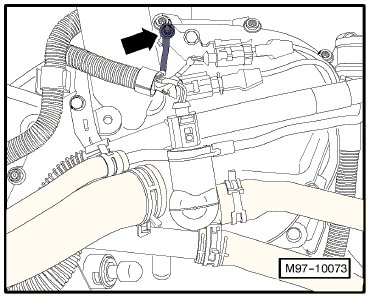

(12) - Ground Connection (in engine compartment, left) -Arrow B-

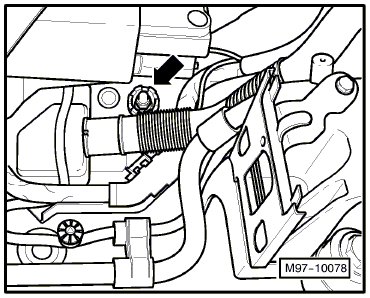

(15) - Ground Connection (on cylinder head) -Arrow-

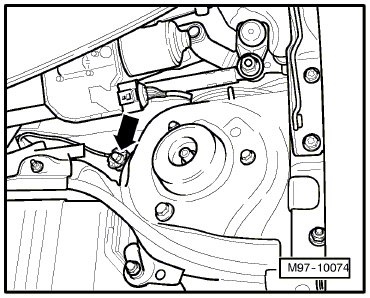

(607) - Ground point inside the plenum chamber on the left side-arrow-

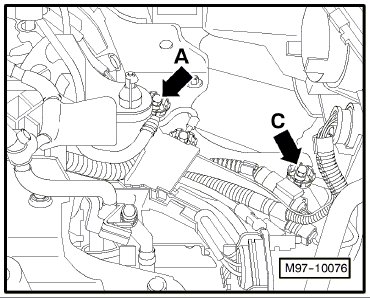

(642) - Ground Connection for the electronic fan control -arrow C-
(655) - Ground point on the left headlamp -arrow B-





(656) - Ground Connection (on right headlamp) -Arrow-
• From MY 11
