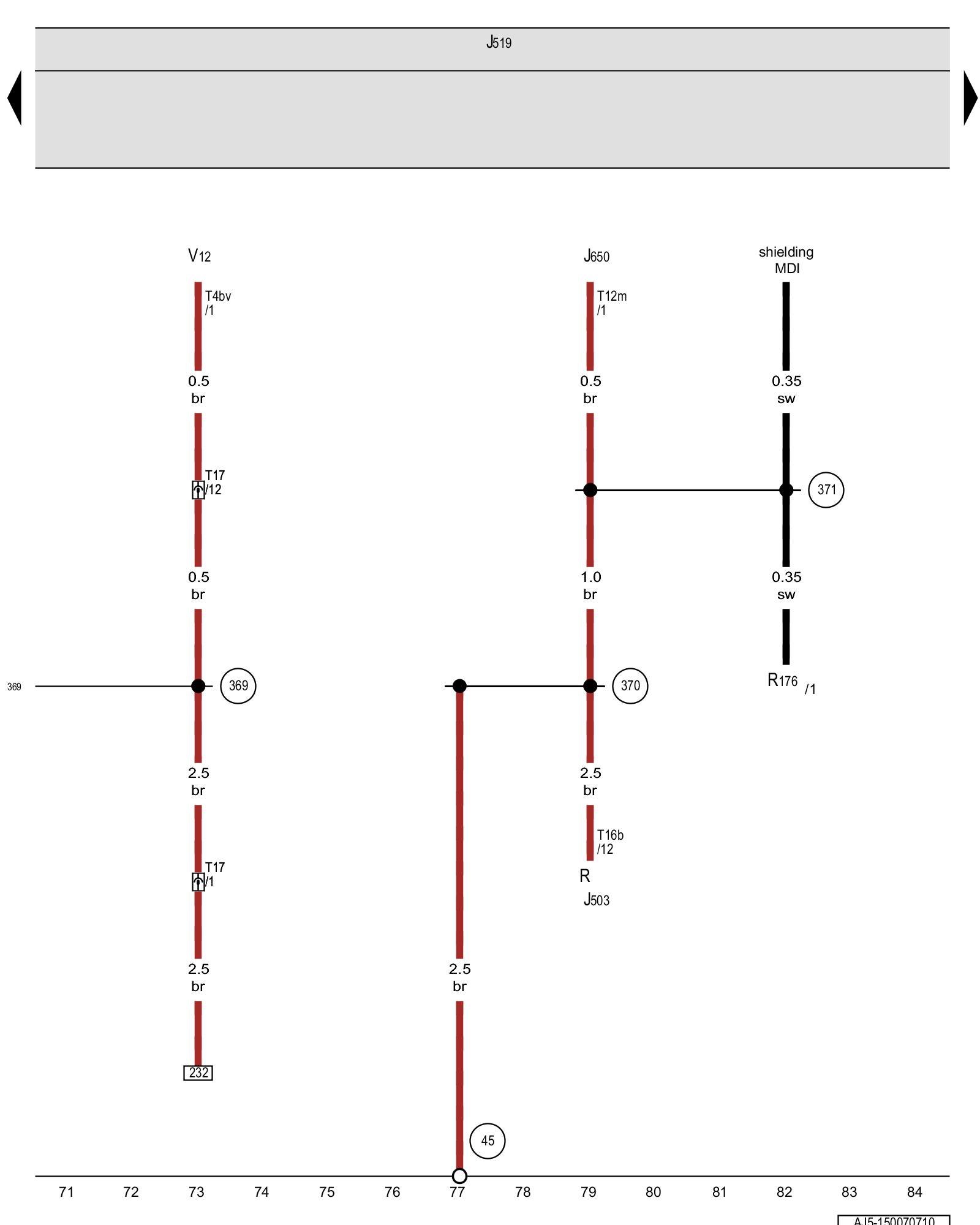

Diagram 150/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection behind instrument panel, center, Ground connection 4 (in main wiring harness), Ground connection 5 (in main wiring harness), Ground connection 6 (in main wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/navigation display unit control module RNS 510 Radio Nav System Overview

J519 - Vehicle electrical system control module

J650 - Multimedia system control module Premium 8 Sound System Overview

R - Radio

R176 - Auxiliary video/audio connection module

T4bv - 4-pin connector

T12m - 12-pin connector

T16b - 16-pin connector

T17 - 17-pin connector

V12 - Rear window wiper motor

(45) - Ground connection behind instrument panel, center

(369) - Ground connection 4 (in main wiring harness)

(370) - Ground connection 5 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)
