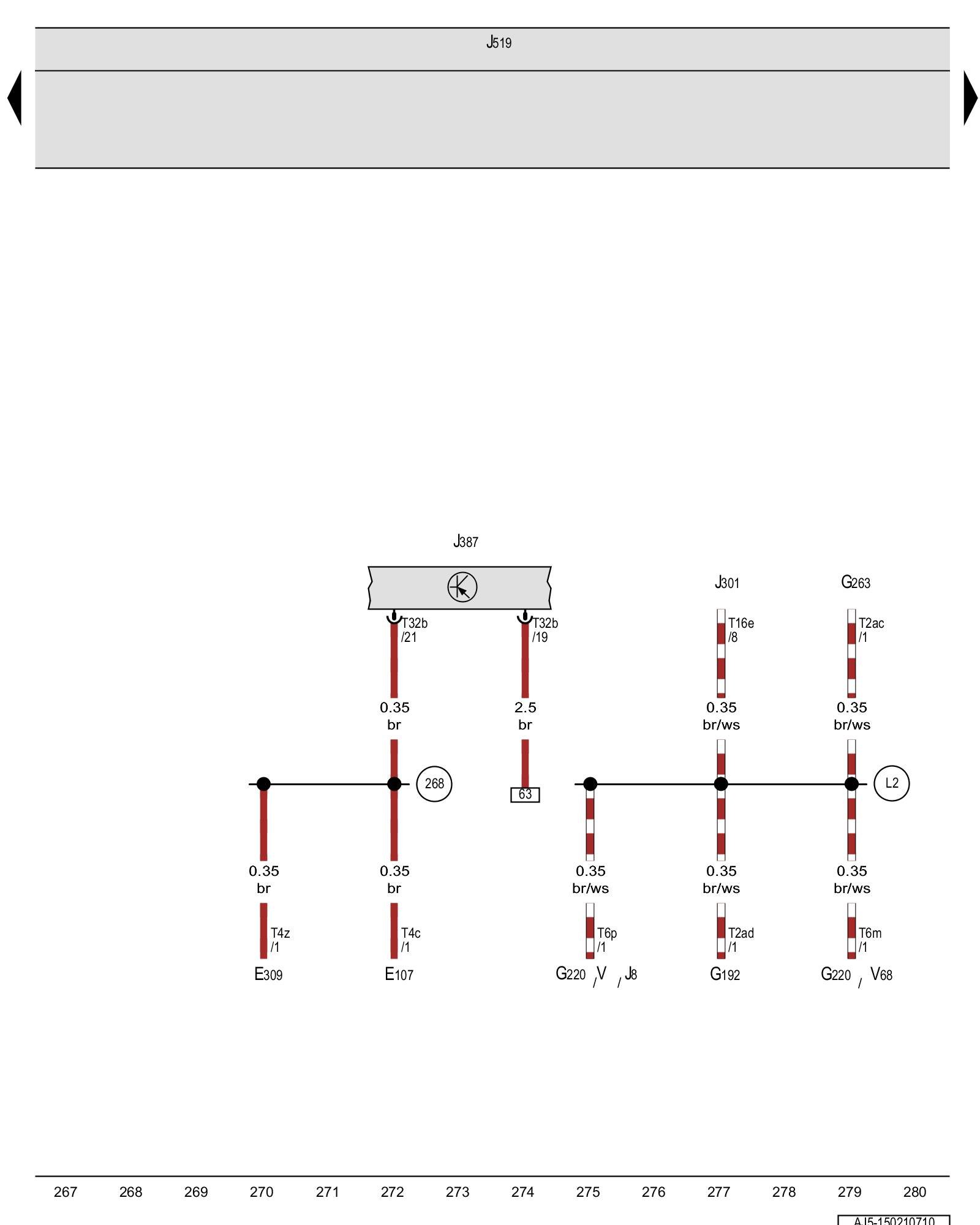

Diagram 150/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground connection 2 (in front passenger door wiring harness), Connection (in A/C system wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E107 - Front passenger door window regulator switch

E309 - Front passenger interior locking button

G192 - Footwell vent temperature sensor Pass Compartment A/C and Heating System Footwell Vent Temperature Sensor -G192-

G220 - Left temperature door potentiometer/actuator Pass Compartment Climatronic (Automatic Climate Control) System Temperature Regulator Door Motor -V68- / Left Temperature Door Potentiometer /actuator -G220-

G263 - Evaporator vent temperature sensor Pass Compartment A/C and Heating System Evaporator Vent Temperature Sensor -G263-

J8 - Auxiliary heater relay

J301 - A/C control module Pass Compartment A/C and Heating System A/C Control Module -J301-

J387 - Front passenger door control module Locations

J519 - Vehicle electrical system control module

T2ac - Double connector

T2ad - Double connector

T4c - 4-pin connector

T4z - 4-pin connector

T6m - 6-pin connector

T6p - 6-pin connector

T16e - 16-pin connector

T32b - 32-pin connector

V - Windshield wiper motor

V68 - Temperature regulator door motor Pass Compartment A/C and Heating System Temperature Regulator Door Motor -V68- / Left Temperature Door Potentiometer /actuator -G220-

(268) - Ground connection 2 (in front passenger door wiring harness)

(L2) - Connection (in A/C system wiring harness)
