Location Of Fuses (SA) On Electronics Box

Fuses

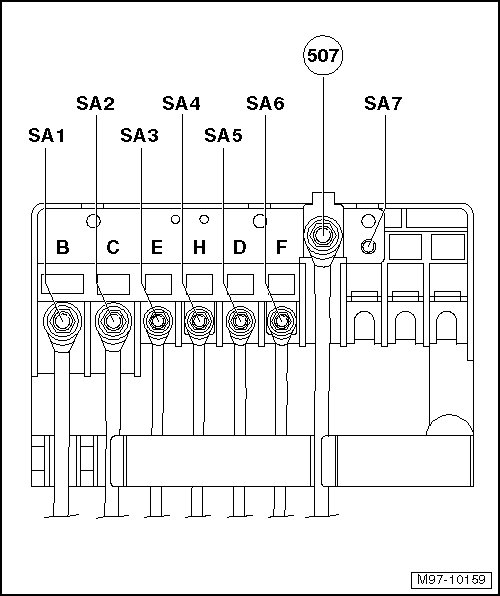

Location of Fuses (SA) on Electronics Box







-
Tightening specifications:
=> Electrical Equipment, Repair Group 97, Removal and
Installation, Fuse Panel
Fuse Colors
200 A - purple
150 A - gray
125 A - pink
100 A - blue
80 A - white
70 A - brown
60 A - yellow
50 A - red
40 A - green
30 A - orange
