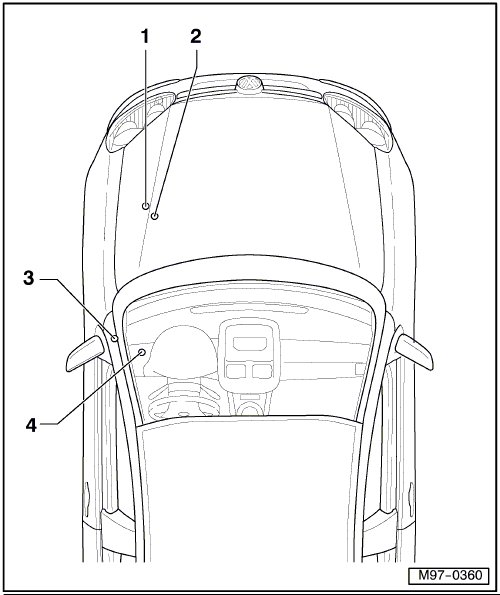

Fuse Panel Locations

Fuse Panel Locations




1 SA Fuse Panel A
- On the E-box in the engine compartment

2 SB Fuse Panel B
- On the E-box in the engine compartment

3 SC Fuse Panel C
- On the instrument panel on the drivers side

4 Thermo Fuse
- Under the instrument panel
