Fuse Assignment (SB) On Fuse Panel B, On The E-Box, MY 11,
Fuse Assignment (SB) On Fuse Panel B, On The E-Box, MY 11,
Fuses

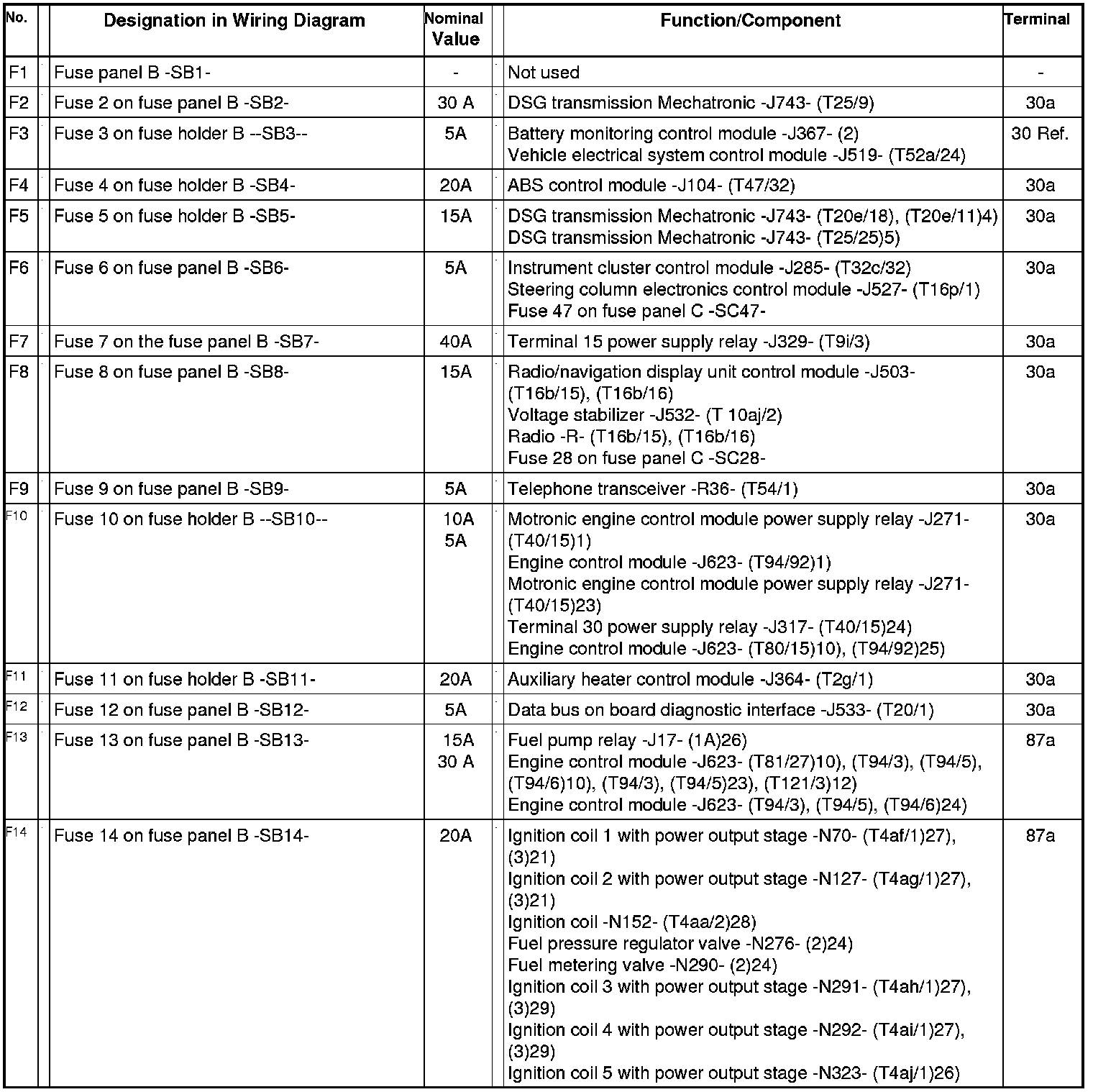

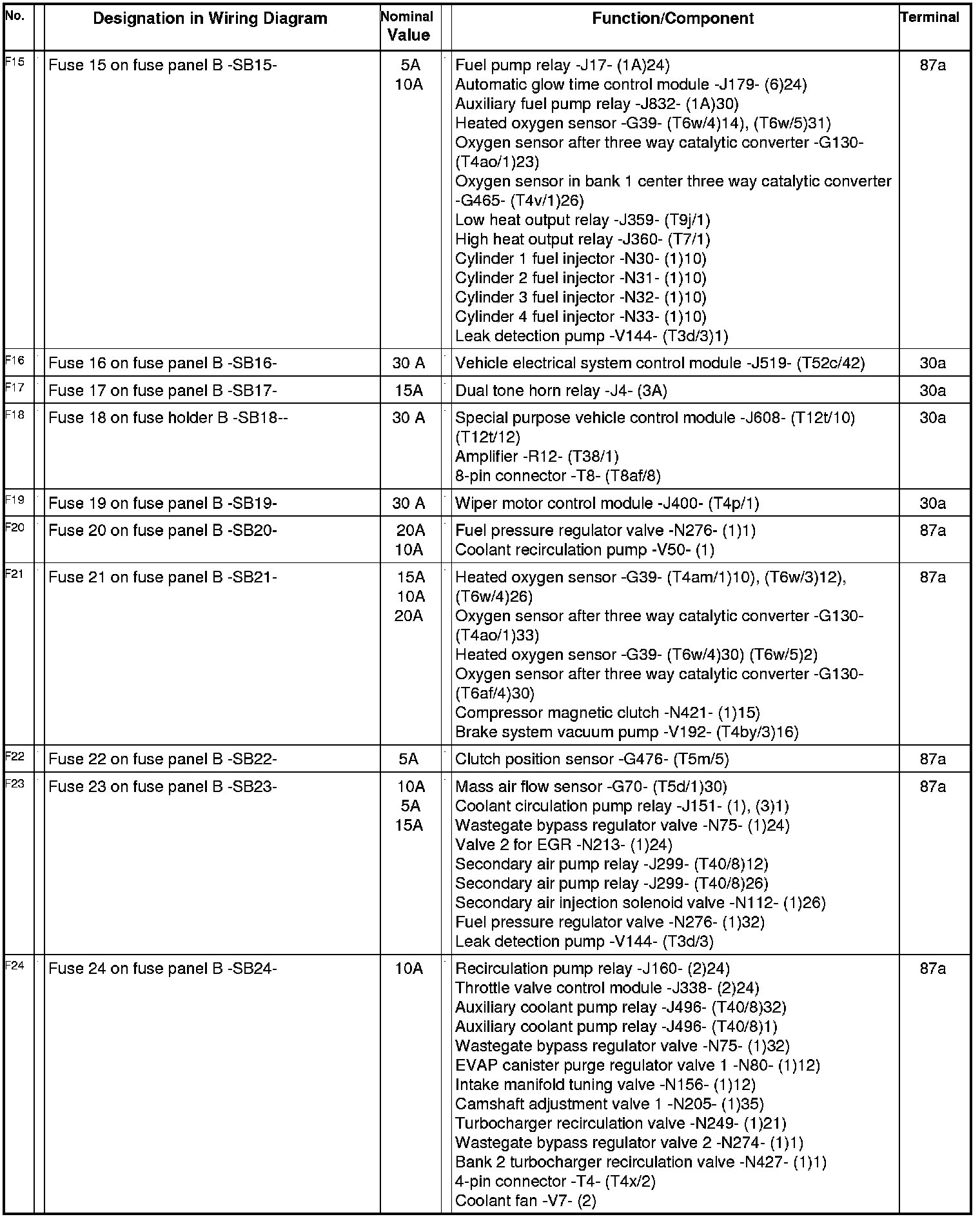

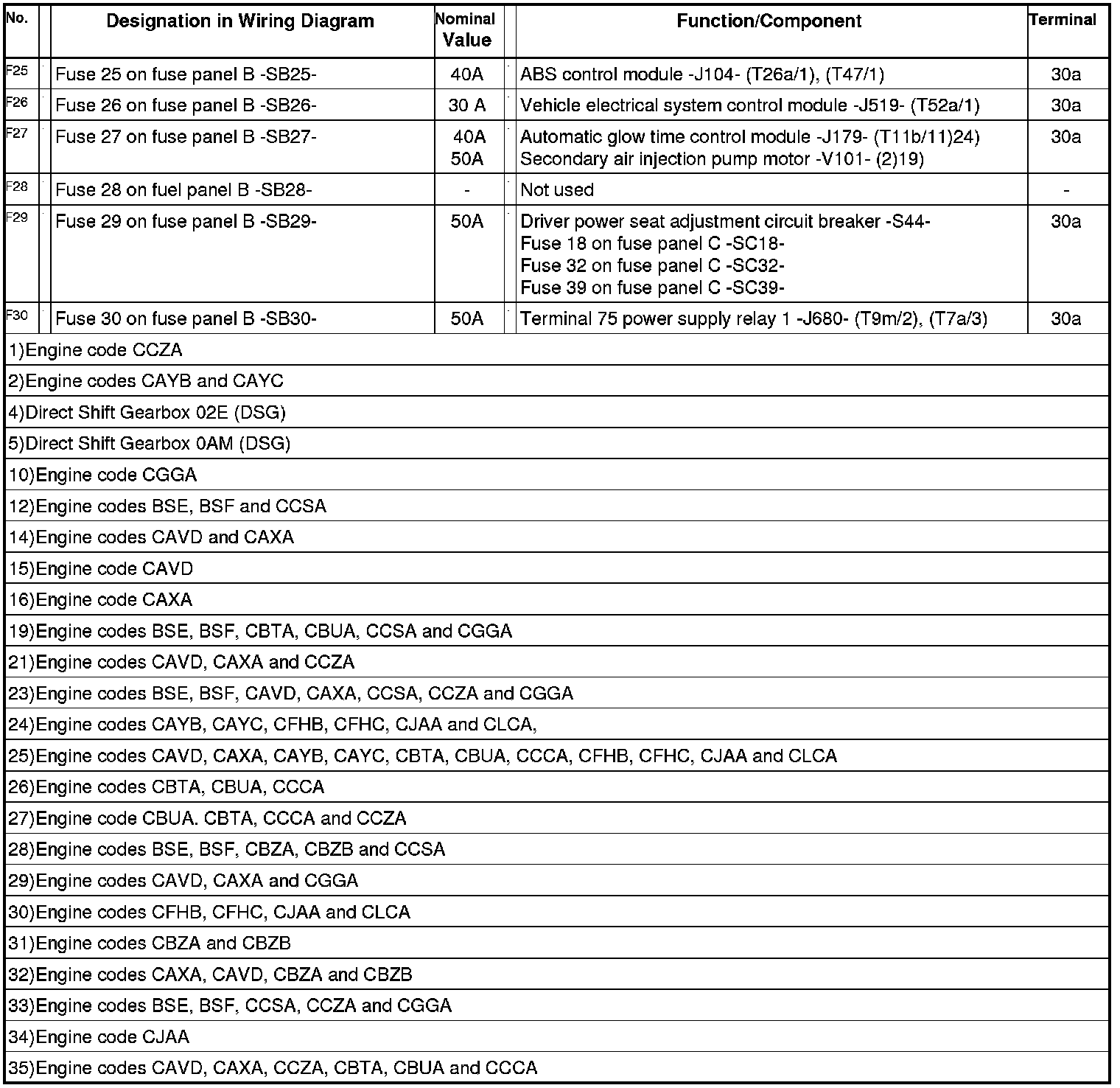

Fuse assignment (SB) on fuse panel B, on the E-Box, MY 11,
