FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Volkswagen
>>
2012
>>
Golf Wagon (AJ5) (CANADA) L4-2.0L DSL Turbo (CJAA)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

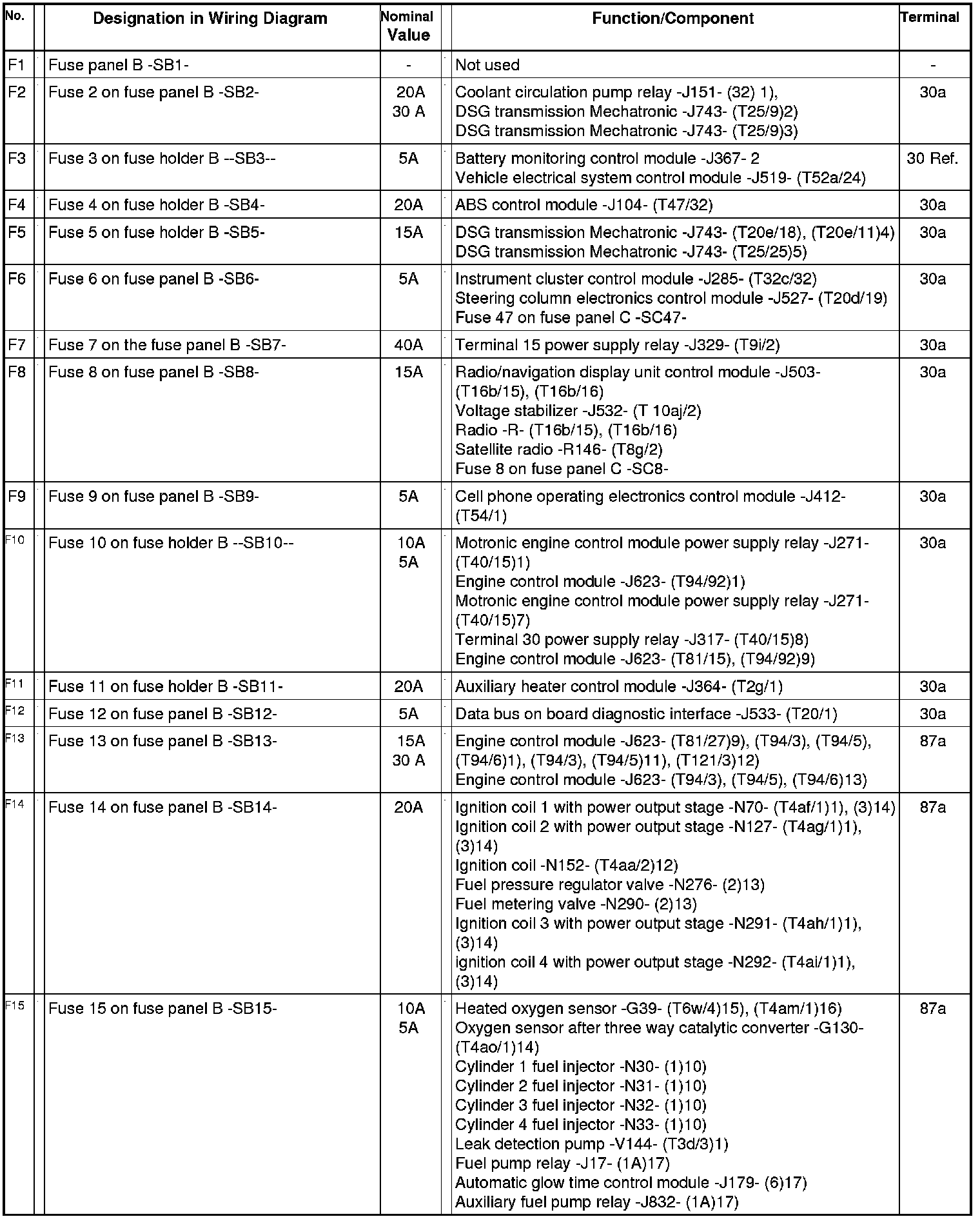

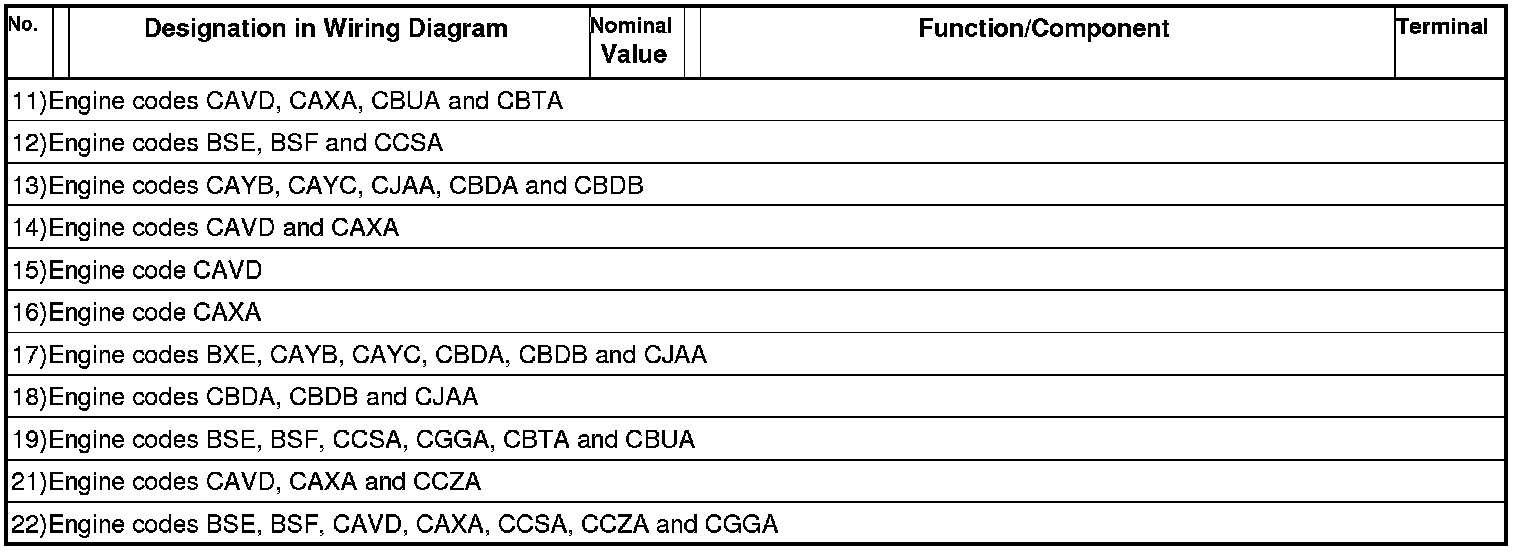

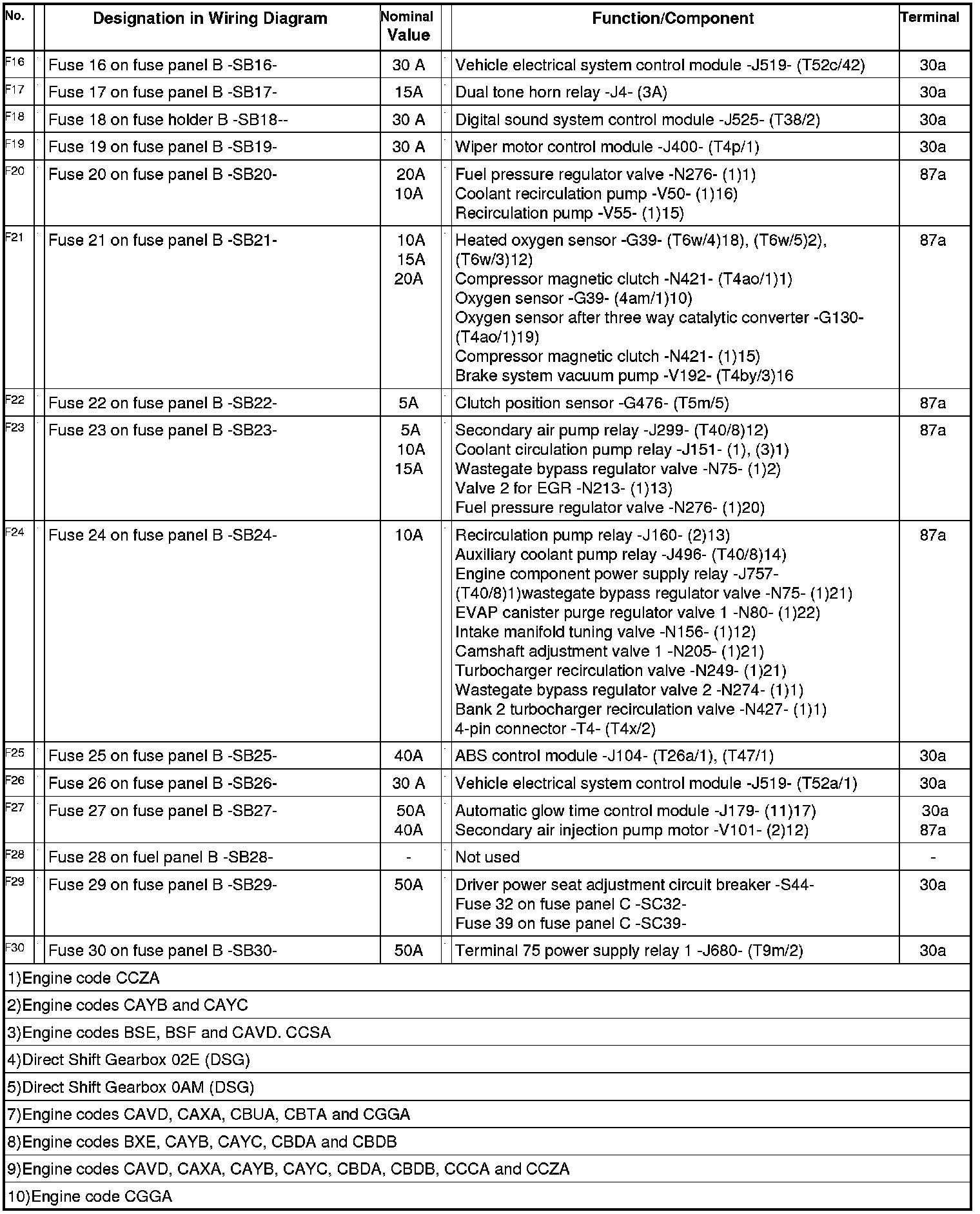

Fuse Assignment (SB) On Fuse Panel B, On The E-Box, From MY 10,
Fuse Assignment (SB) On Fuse Panel B, On The E-Box, From MY 10,
Fuses
Fuse assignment (SB) on fuse panel B, on the E-Box, from MY 10,
