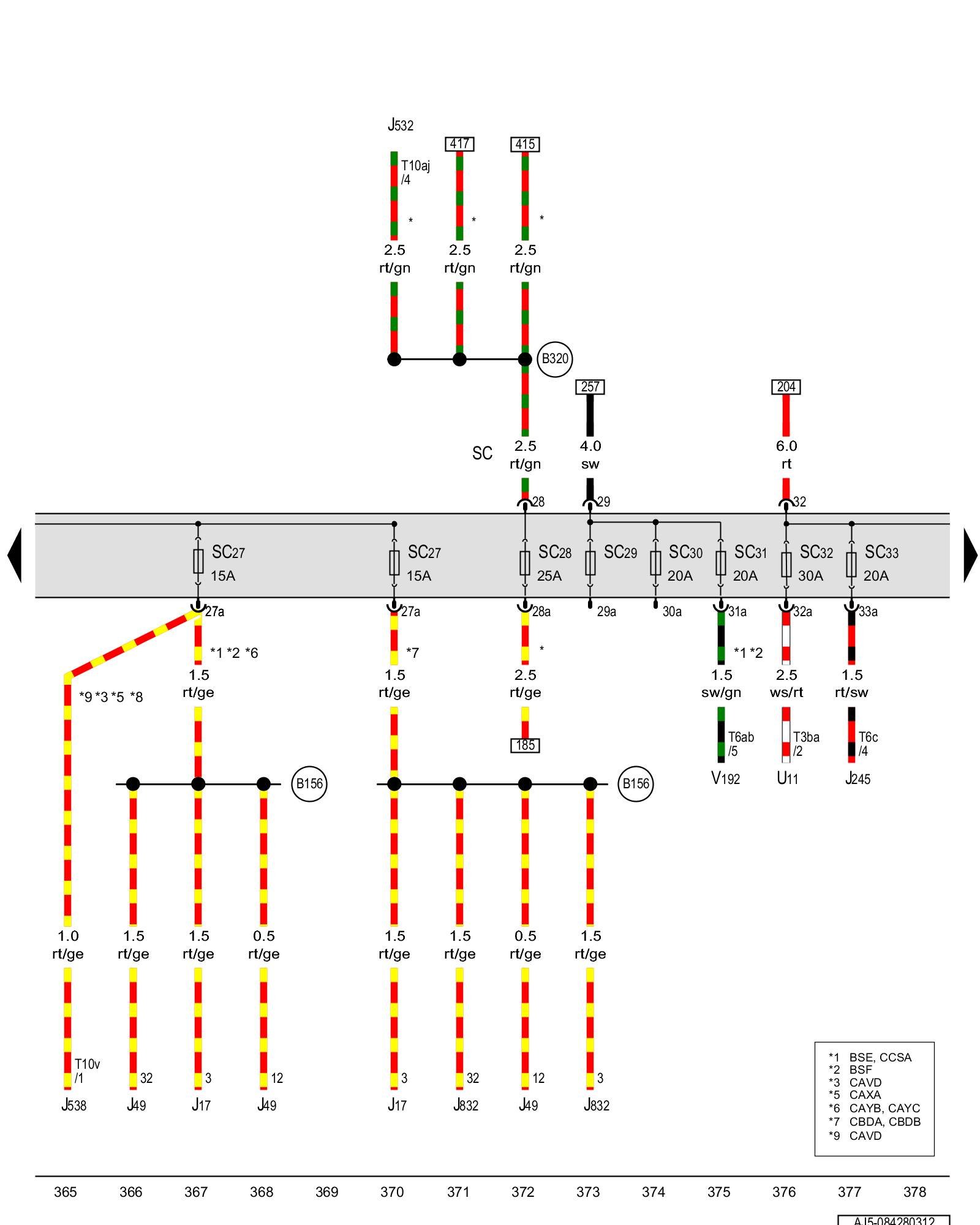

Diagram 84/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel pump relay Locations

J49 - Fuel pump relay 2 Locations

J245 - Power sunroof control module Sunroof w/ Glass Panel Assembly Overview

J532 - Voltage stabilizer Locations

J538 - Fuel pump control module

J832 - Auxiliary fuel pump relay Locations

SC - Fuse panel C

SC27 - Fuse 27 (on fuse panel C)

SC28 - Fuse 28 (on fuse panel C)

SC29 - Fuse 29 (on fuse panel C)

SC30 - Fuse 30 (on fuse panel C)

SC31 - Fuse 31 (on fuse panel C)

SC32 - Fuse 32 (on fuse panel C)

SC33 - Fuse 33 (on fuse panel C)

T3ba - 3-pin connector

T6ab - 6-pin connector

T6c - 6-pin connector

T10aj - 10-pin connector

T10v - 10-pin connector

U11 - Interior socket, 230 V, 110 V

V192 - Brake system vacuum pump

(B156) - Positive connection (30a) (in interior wiring harness)

(B320) - Positive connection 6 (30a) (in main wiring harness)

* - Only for vehicles with Start/Stop system
