Relay Carrier, Under Instrument Panel on Left Side

Relay Carrier, Under Instrument Panel on Left Side


Always follow the instructions regarding disconnecting and connecting the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Removal

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the trim on the driver side.

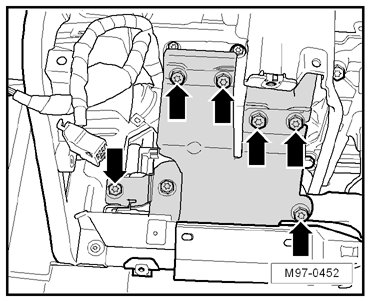

- Remove the screws from the bracket - arrows -.

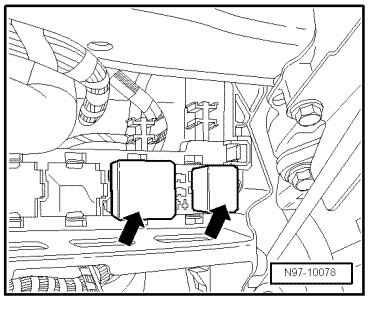

- Remove relays - arrows - from the relay panel.






• The number of relays is dependent on vehicle equipment.

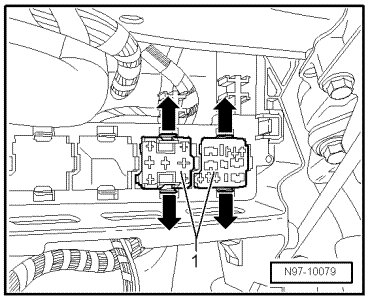

- Unclip the tabs in - direction of arrow - and push the connector - 1 - through the relay panel.






- Release the tab - 1 - on the relay panel in - direction of arrow - and remove the relay panel.






Installation

Installation is performed in the reverse order of removal. Note the following:

- Clip the connection into the relay panel.

- Place the relay panel - 2 - in the guide - 1 - and then lock it in.






- Connect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.
