Left Instrument Panel Fuse Holder

Left Instrument Panel Fuse Holder

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)


Always follow the instructions regarding disconnecting and connecting the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.


• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removal

- Disconnect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove the trim on the driver side.

- Remove the side cover - 1 - from the instrument panel using (VAS 3409).






- Remove the fuse assignment card - 1 - from the fuse panel - 2 -.

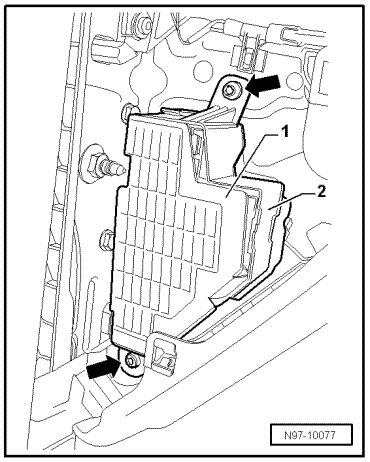

- Remove the screws - arrows - and the fuse panel - 1 - just enough so that the cables can be guided into the interior.

Installation

- Connect the battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Install in reverse order of removal.
