Home >> Volkswagen >> 2012 >> Golf Wagon (AJ5) (CANADA) L4-2.0L DSL Turbo (CJAA) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Fuel Delivery and Air Induction >> System Specifications >> Diesel Fuel Injection - Fastener Tightening Specifications

Diesel Fuel Injection - Fastener Tightening Specifications

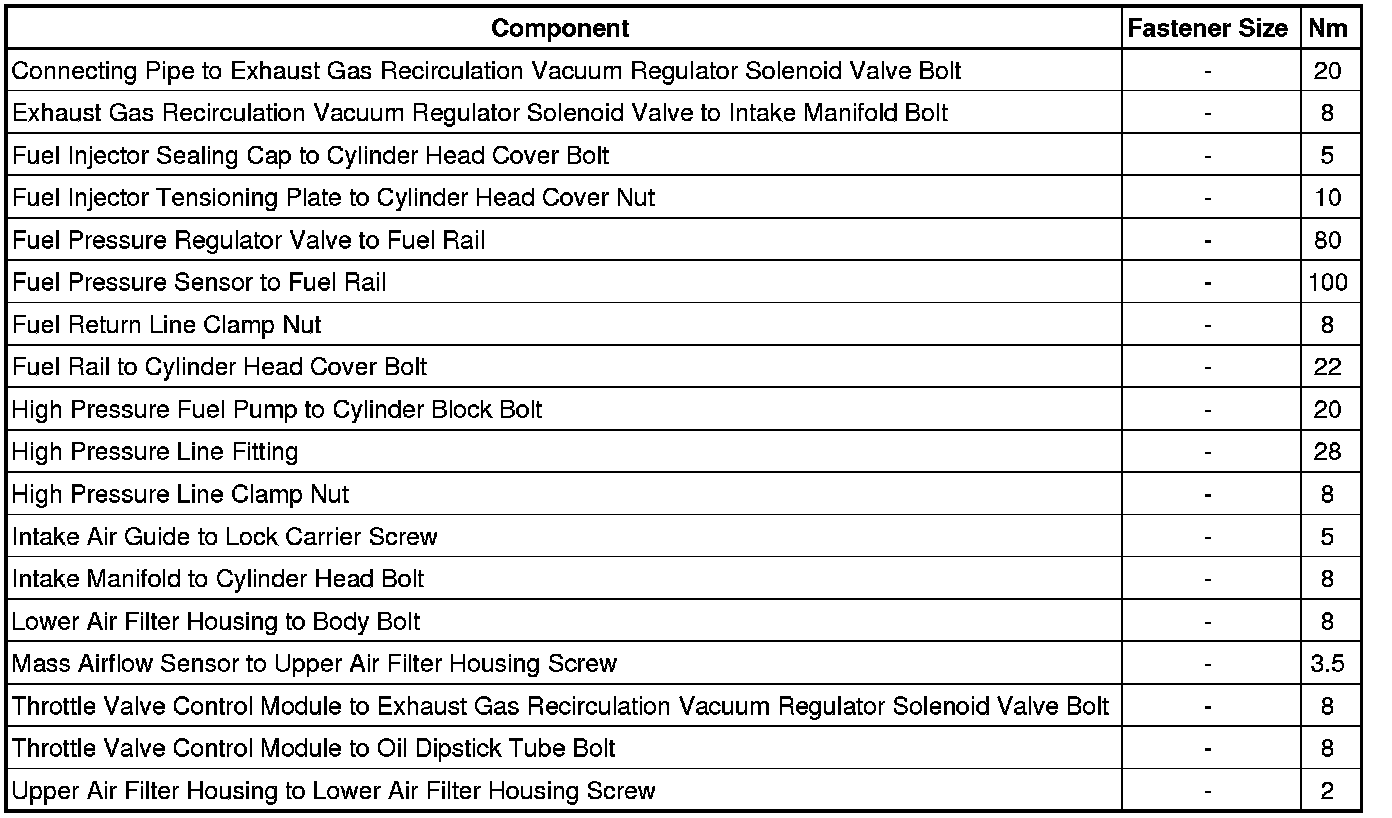

Fastener Tightening Specifications
