Brake Light Switch: Diagrams






Engine Management System - Connector Views

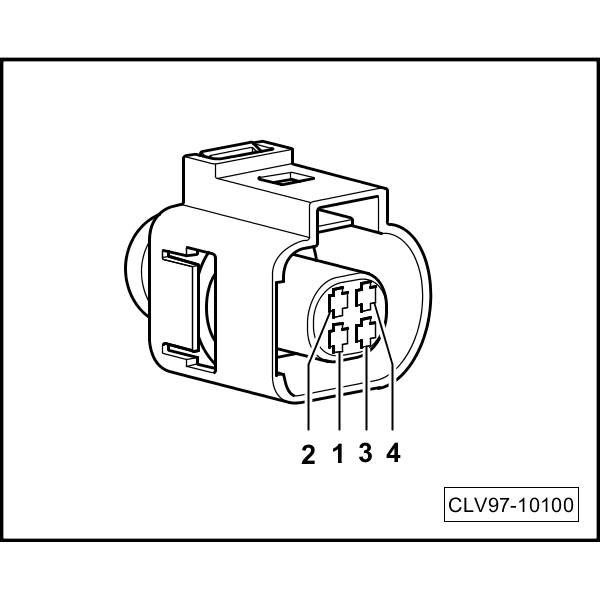

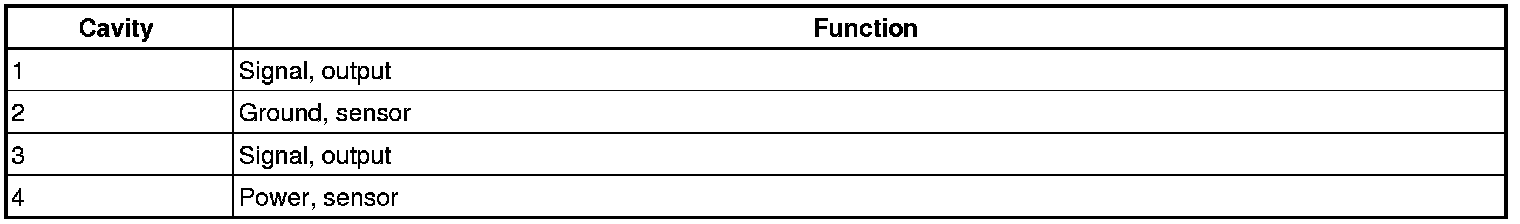

Brake lamp switch -F- / Brake pedal switch -F47-



All engines
