Footwell Vent Temperature Sensor (G192)

Footwell Vent Temperature Sensor (G192)

Removing

- Remove instrument panel.

- Remove the data bus on board diagnostic interface (J533).

- Remove the left footwell vent. Refer to => [ Left Footwell Vent ] Left Footwell Vent.

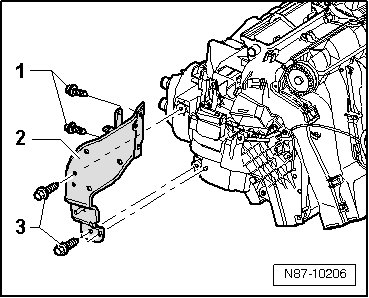

- Remove the bolts - 1 - and - 3 - (9 ± 1.3 Nm).

- Remove the bracket - 2 -.






- Disconnect the connector from the footwell vent temperature sensor - 1 -.

- Turn the footwell vent temperature sensor 90° and remove it from the housing.

Installing

Install in reverse order of removal.
