Seat Occupied Recognition System Repair Set, Vehicles with Manual Seat Adjustment

Seat Occupied Recognition System Repair Set, Vehicles with Manual Seat Adjustment


Observe safety precautions when working on seat occupied recognition. Refer to => [ Passive Occupant Detection System Safety Precautions ] Passive Occupant Detection System Safety Precautions.

• Seat cushion, passenger occupant detection mat, control module and pressure sensor must only be replaced together. The components are complementary and must not be separated!

• Only disconnect wiring harnesses mentioned in the following description!

Removing

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Remove front seat. Refer to => [ Front Seat ] Front Seat.

- Attach the seat to the fixture for seat repair (VAS 6136).

- Remove right trim on seat:

• Seat without folding backrest => [ Right Seat Trim ] Right Seat Trim.

• Seat with folding backrest => [ Left Folding Passenger Seat Trim ] Left Folding Passenger Seat Trim.

- Remove left trim on seat:

• Seat without folding backrest => [ Left Seat Trim ] Left Seat Trim.

• Seat with folding backrest => [ Left and Right Folding Passenger Seat Trim ] Left and Right Folding Passenger Seat Trim.

- Remove bracket and front seat operating lever. Refer to => [ Front Seat Support and Operating Lever ] Front Seat Support and Operating Lever.

- If present, remove mount for seat drawer. Refer to => [ Seat Drawer Mount ] Seat Drawer Mount.

- If present, remove connector - 1 - from Front Passenger's Heated Seat Control Module (J132).

- If equipped, remove clip - 2 -.

- Remove clips - 3 -.

- If present, disconnect connector - 4 - and remove connector from seat frame.

- Disconnect side airbag connector - 5 - and remove connector from seat frame.

- Remove line clip - 6 - and disconnect backrest wiring harness from seat frame.






- Remove front seat backrest. Refer to => [ Left Front Seat Backrest ] Left Front Seat Backrest.

- Remove the cover from the front seat cushion. Do not remove the cushion. Refer to => [ Front Seat Pan Covers and Upholstery ] Front Seat Pan Covers and Upholstery.

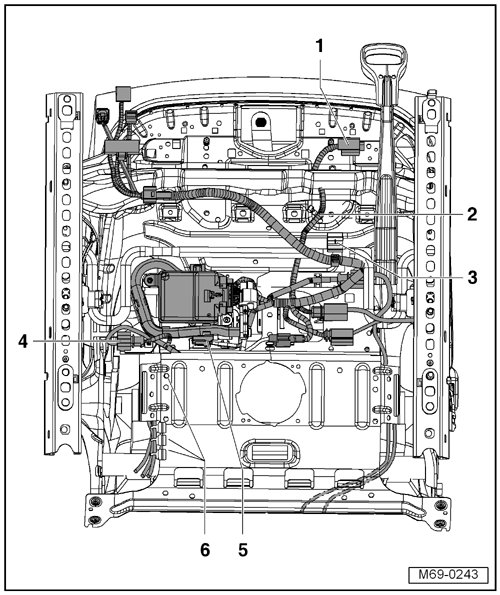

- Unclip pressure hose - 6 - from retainers.

- Unclip Seat Occupied Recognition Pressure Sensor (G452) - 5 - from retainer, when doing this do not disconnect harness connectors - 3 - or - 4 - at Seat Occupied Recognition Pressure Sensor (G452) and similarly at Seat Occupied Recognition Control Module (J706) - 2 -.

- Remove the bolts - 1 - (1.5 Nm).

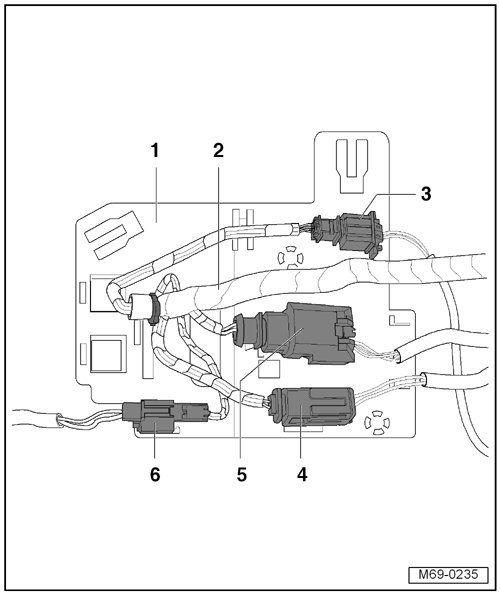

- If present, disconnect front seat heating connector - 3 -.

- Disconnect black Seat Occupied Recognition Seat Belt Force Sensor (G453) connector - 5 -

- Disconnect the yellow Front Passenger's Seat Belt Switch (E25) connector - 4 -.

- If present, disconnect front seat backrest heating connector - 6 -.

- Cut wiring harness cable ties - 2 -.

- Slide white bracket - 1 - left and remove from seat frame.

- Remove all connectors from bracket.


Do not disconnect harness connector at Seat Occupied Recognition Control Module (J706) !

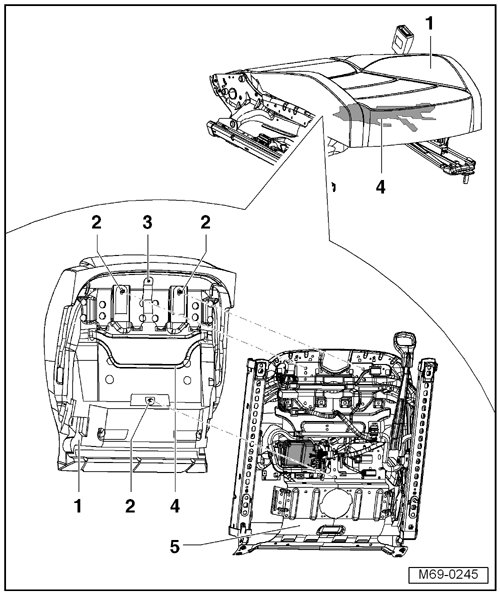

- Lift upholstery of front seat cushion - 1 -, when doing this do not separate upholstery of front seat cushion from mat for seat occupied recognition - 4 -.

- Remove clip - 2 - from seat frame - 5 -, clip - 3 - must not be removed.


• Do not damage the adhesive - 8 - (Fig. M69-0244 ) when removing and installing.

• Do not separate the front seat cushion, passenger occupant detection system mat, pressure hose, passenger occupant detection system pressure sensor (G452) and passenger occupant detection system control module (J706).

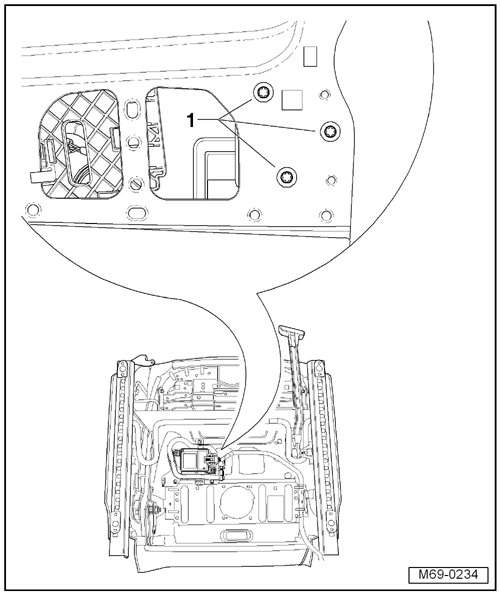

Remove the bolts - 1 - (2.5 Nm) and then remove the passenger occupant detection system control module (J706) mount.






- Remove upholstery of front seat cushion - 1 - together with mat for seat occupied recognition - 4 -.

- Thread pressure hose - 6 -, Seat Occupied Recognition Pressure Sensor (G452) - 7 -, Seat Occupied Recognition Control Module (J706) - 9 - and seat wiring harness - 8 - through opening - arrow - on seat frame - 5 -.






Installing

• When installing, there must be no wiring harness of seat heater between upholstery and mat for seat occupied recognition.

• Pressure hose must be routed without kinking.

• Stickers with notes on harness connectors must not be damaged.

• After connecting the vehicle battery, check replaced components for ease of movement by adjusting the seat.

• After replacing the passenger occupant detection system, passenger classification system basic setting must be performed with the Vehicle Diagnosis, Testing and Information System (VAS 5051) in "Guided Fault Finding". Refer to => [ Components, Adapting ] Components, Adapting.


Basic setting must be performed when seat is not occupied.

Install in reverse order of removal. Note the following:

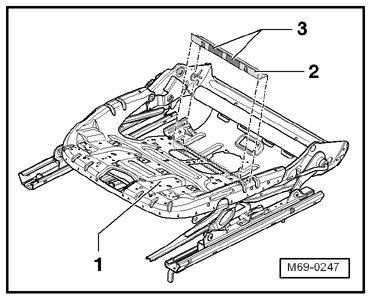

- Secure insertion profile - 2 - with double-sided tape - 3 - on seat frame - 1 - as shown.






- Clip pressure hose - 6 - into bracket. Begin clipping into bracket near Seat Occupied Recognition Pressure Sensor (G452) - 5 - and end near connector - 3 -.







Do not damage the adhesive - 8 - when removing and installing.

Ensure no one is in the vehicle when the battery is connected.

- Connect the battery.
