Front Safety Belt Height Adjuster

Front Safety Belt Height Adjuster

• The following describes removing and installing on the left side of the vehicle. Removing and installing on the right side is identical.

Removing

- Remove upper B-pillar trim. Refer to => [ Upper B-Pillar Trim ] Upper B-pillar Trim.

• Belt anchor or anchor rail does not need to be removed on seat belt.

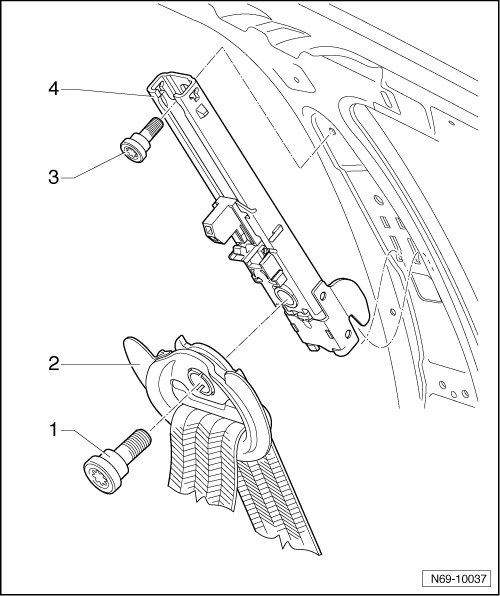

- Remove the bolt - 1 - (40 Nm) and remove the belt relay - 2 - from belt height adjuster.

- Remove bolt - 3 - (20 Nm) and separate belt height adjuster - 4 - from mounting in carrier plate.






Installing

- Install in reverse order of removal.
