Child Seat Tether Attachment: Service and Repair

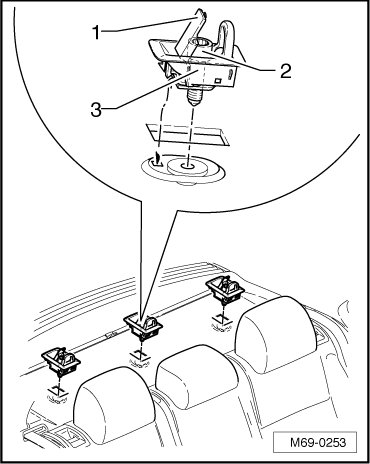

Child Seat Anchors in Rear Parcel Shelf

Removing

- Open cover cap - 1 -.






- Remove the bolt - 2 - (20 Nm).

- Remove child seat anchor - 3 - from rear shelf.

Installing

- Install in reverse order of removal.
