Airbag Systems Without Seat Occupied Recognition Components

Control modules in interior

Airbag systems without seat occupied recognition components

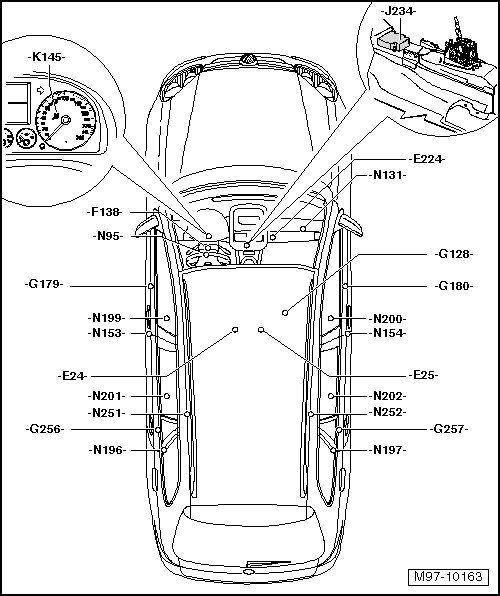

Airbag systems without seat occupied recognition are
made up of the following components:





1 - Airbag control module -J234-
• Component location: behind the center console


2 - Front passenger airbag -disabled- indicator lamp -K145-
• Component location: inside the instrument cluster


3 - Airbag spiral spring/return spring with slip ring -F138-
• Component location: on the steering column switch Installation

Seat belt switches:

4 - Driver seat belt switch -E24-
• Component location: on the driver seat seat belt latch


5 - Front passenger seat belt switch -E25-
• Component location: on the front passenger seat seat belt latch


6 - Front passenger airbag deactivation key switch -E224-
• Component location: in the glove compartment

Sensors:

7 - Front passenger seat occupant sensor -G128-
• Component location: inside the front passenger seat


8 - Driver side airbag crash sensor -G179-
• Component location: behind the driver door trim panel


9 - Front passenger side airbag crash sensor -G180-
• Component location: behind the front passenger door trim panel


10 - Driver side rear side airbag crash sensor -G256-
• Component location: inside the rear wheel housing on the driver side


11 - Front passenger side rear side airbag crash sensor -G257-
• Component location: inside the rear wheel housing on the front passenger
side

Igniters:

12 - Driver airbag igniter -N95-
• Component location: on the steering column switch Installation


13 - Front passenger airbag igniter 1 -N131-
• Component location: behind the instrument panel on the front passenger
side


14 - Driver seat belt tensioner igniter 1 -N153-
• Component location: on the automatic belt retractor, behind the B-pillar
trim on the driver side, at the bottom


15 - Front passenger seat belt tensioner igniter 1 -N154-
• Component location: on the automatic belt retractor, behind the B-pillar
trim on the front passenger side, at the bottom


16 - Driver side rear seat belt tensioner igniter -N196-
• Component location: on the automatic belt retractor, behind the C-pillar
trim on the driver side


17 - Front passenger side rear seat belt tensioner igniter -N197-
• Component location: on the automatic belt retractor, behind the C-pillar
trim on the front passenger side


18 - Driver thorax airbag igniter -N199-
• Component location: inside the driver seat on the left side


19 - Front passenger thorax airbag igniter -N200-
• Component location: inside the front passenger seat, on the right side


20 - Driver side rear thorax airbag igniter -N201-
• Component location: inside the rear seat, on the left side


21 - Front passenger rear thorax airbag igniter -N202-
• Component location: inside the rear seat, on the right side


22 - Driver head curtain airbag igniter -N251-
• Component location: under the roof trim panel on the left side


23 - Front passenger head curtain airbag igniter -N252-
• Component location: under the roof trim panel on the right side
