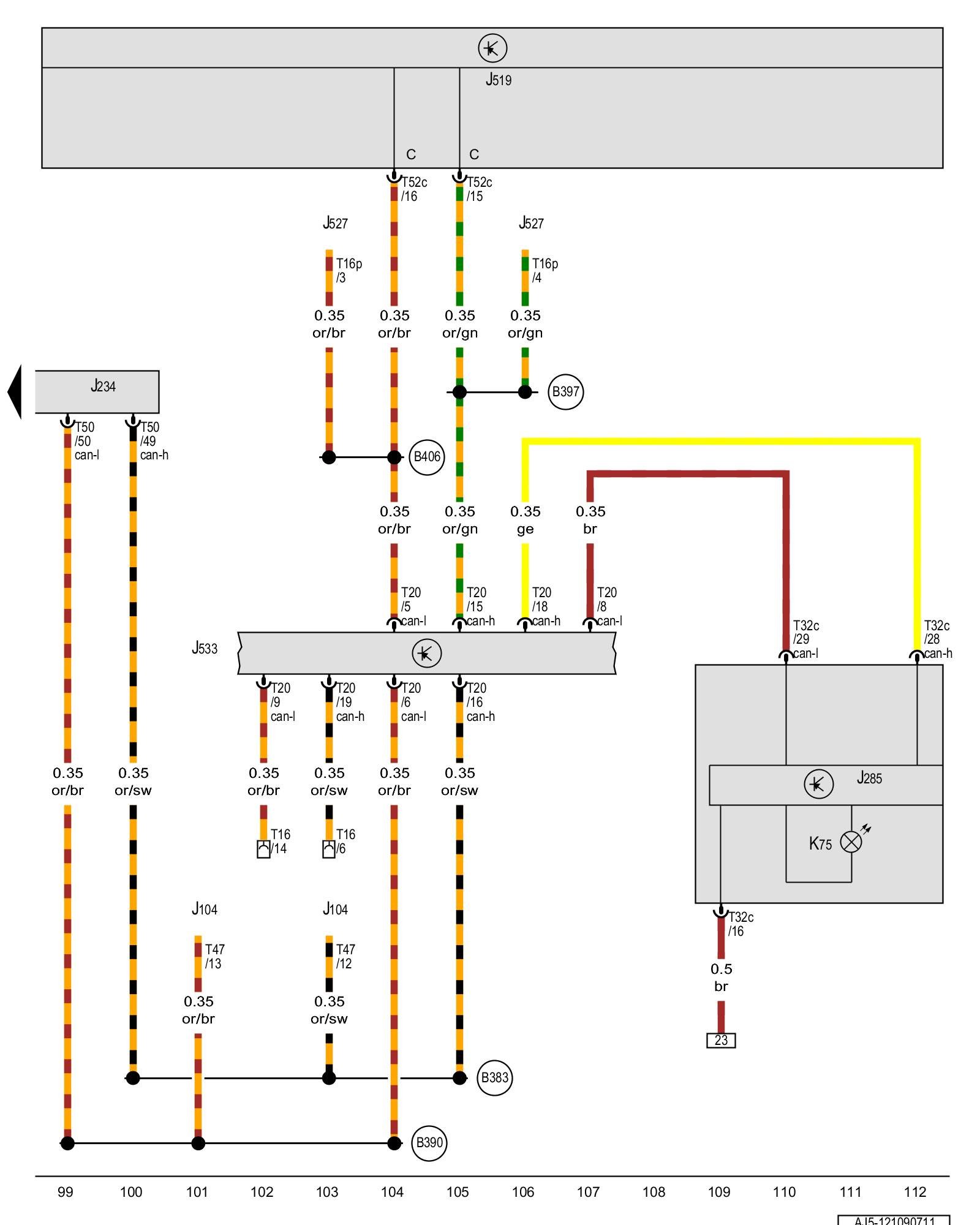

Diagram 121/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface, Airbag indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Locations [1][2]Diagrams

J234 - Airbag control module, under the center console Air Bag Control Module

J285 - Instrument cluster control module

J519 - Vehicle electrical system control module

J527 - Steering column electronics control module Locations Locations Steering Column Electronics Control Module -J527-

J533 - Data bus on board diagnostic interface Locations

K75 - Airbag indicator lamp

T16 - 16-pin connector

T16p - 16-pin connector

T20 - 20-pin connector

T32c - 32-pin connector

T47 - 47-pin connector

T50 - 50-pin connector

T52c - 52-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

Previous Diagram 121/8 (Tracks 85-98)
