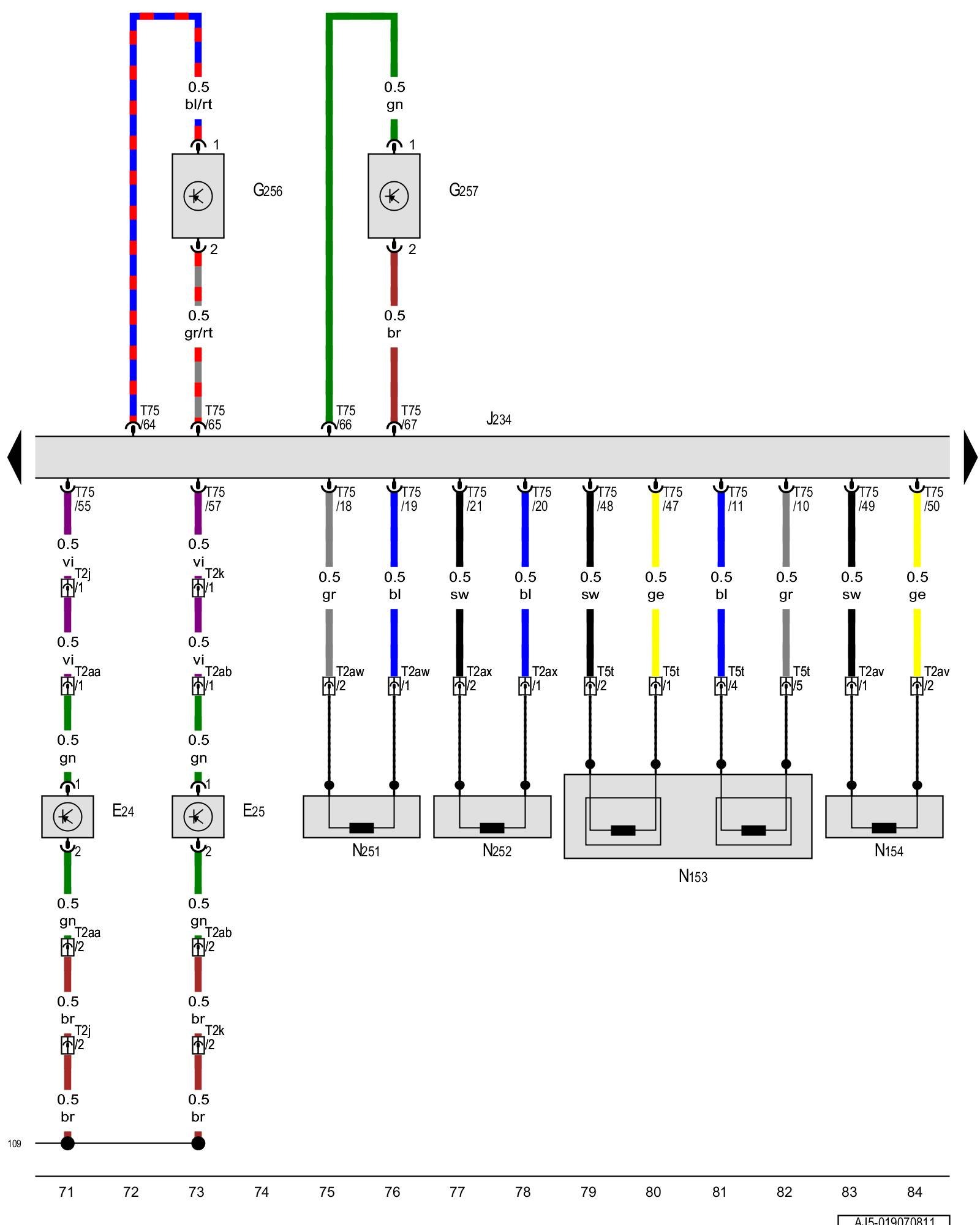

Diagram 19/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver seat belt switch, Front passenger seat belt switch, Driver side rear side airbag crash sensor, Front passenger side rear side airbag crash sensor, Airbag control module, Driver seat belt tensioner igniter 1, Driver head curtain airbag igniter, Front passenger head curtain airbag igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E24 - Driver seat belt switch Driver Seat Belt Switch -E24-

E25 - Front passenger seat belt switch Front Pass Seat Belt Switch -E25-

G256 - Driver side rear side airbag crash sensor Locations LR Thorax Airbag Crash Sensor -G256- and RR Thorax Airbag Crash Sensor -G257-

G257 - Front passenger side rear side airbag crash sensor Locations LR Thorax Airbag Crash Sensor -G256- and RR Thorax Airbag Crash Sensor -G257-

J234 - Airbag control module Locations

N153 - Driver seat belt tensioner igniter 1 Locations Driver Seat Belt Tensioner Igniter 1 -N153-

N154 - Front passenger seat belt tensioner igniter 1 Locations Front Pass Seat Belt Tensioner Igniter 1 -N154-

N251 - Driver head curtain airbag igniter Airbag Component Locations Driver Head Curtain Airbag Igniter -N251- and Front Pass Head Curtain Airbag Igniter -N252-

N252 - Front passenger head curtain airbag igniter Airbag Component Locations Driver Head Curtain Airbag Igniter -N251- and Front Pass Head Curtain Airbag Igniter -N252-

T2aa - Double connector

T2ab - Double connector

T2av - Double connector

T2aw - Double connector

T2ax - Double connector

T2j - Double connector

T2k - Double connector

T5t - 5-pin connector

T75 - 75-pin connector

(109) - Ground connection (in airbag wiring harness)
