Knee Airbag Bracket, Jetta from MY 2010 and Golf Wagon from MY 2010

Knee Airbag Bracket, Jetta from MY 2010 and Golf Wagon from MY 2010

Removing

- Disconnect the battery.

- Remove the instrument panel => [ Instrument Panel ] Instrument Panel

- Remove the footwell vents on the driver side.

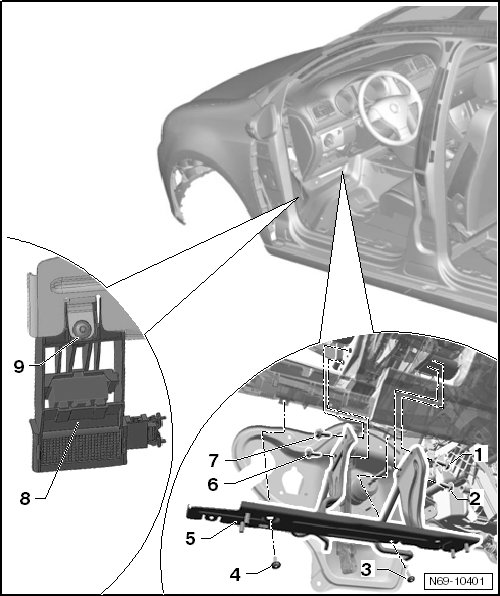

- Remove the bolt - 9 - (1.5 Nm) and loosen the bracket - 8 -.

- Unscrew the bolts - 3 - and - 4 - (1.5 Nm).

- Remove the bolts - 1 -, - 2 -, - 6 - and - 7 - and then the bracket - 5 -.






Installing


If a knee airbag bracket is being replaced, then the paint around the threaded pin and on the crossmember surfaces must be removed. This is necessary to assure the perfect ground connection.


Install the bolts in this sequence: - 2 -, - 6 -, - 1 - and - 7 - to assure a correct installation.

- Attach the knee airbag bracket with bolts - 2 -, - 6 -, - 1 - and - 7 - (9 Nm).

- Install in reverse order of removal.
