Airbag Control Module -J234-







Control modules in interior

Airbag control module -J234-







Component Location:
Below front center console -Arrow-

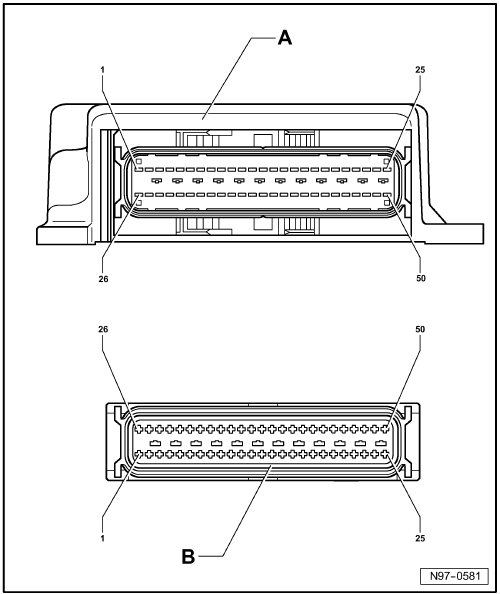

50-pin connector assignment:







A - Airbag control module -J234-
Connector:

B - 50-pin connector -T50- inside the wiring harness



75-pin connector assignment:







A - Airbag control module -J234-
Connector:

B - 75-pin connector -T75- inside the wiring harness
