Overview Of Relay Carrier

Relay

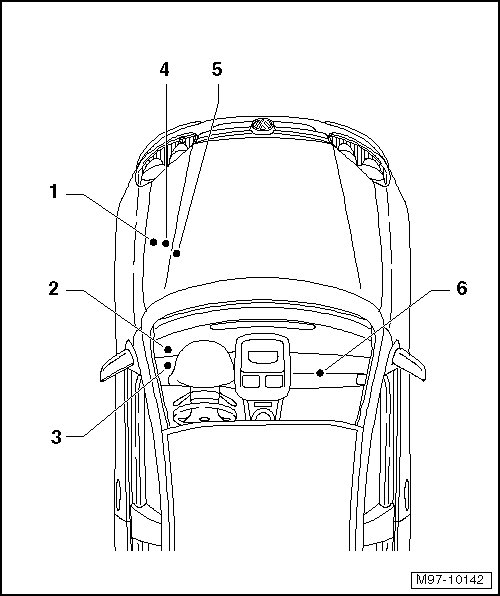

Overview of Relay Carrier







1 - Relay carrier on electronics box
• In engine compartment, left
• Relay arrangement (MY 2010) => [ Relay arrangement on the E-Box (MY 10) ] Relay Arrangement On The E-Box (MY 10)
• Relay arrangement (MY 11) => [ Relay arrangement on the E-Box (MY 11) ] Relay Arrangement On The E-Box (MY 11)
• Relay arrangement (MY 12) => [ Relay arrangement on the E-Box (MY 12) ] Relay Arrangement On The E-Box (MY 12)

2 - Relay Carrier on upper Vehicle Electrical System Control Module
• Under the instrument panel on the driver side, next to the steering column
• Component location (MY 10) => [ Relay carrier on upper/lower vehicle electrical system control module, for MY 10 only ] Relay Carrier On Upper/lower Vehicle Electrical System Control Module,for MY 10 Only
• Component location (MY 11) => [ Relay carrier on vehicle electrical system control module, from MY 11 ] Relay Carrier On Vehicle Electrical System Control Module, From MY11
• Relay arrangement (MY 10) => [ Relay carrier on upper vehicle electrical system control module , for MY 10 only ] Relay Carrier On Upper/lower Vehicle Electrical System Control Module,for MY 10 Only
• Relay arrangement (MY 11) => [ Relay carrier on upper vehicle electrical system control module, for MY 11 only ] Relay Carrier On Vehicle Electrical System Control Module, From MY11
• Relay arrangement (MY 12) => [ Relay carrier on upper vehicle electrical system control module, for MY 12 only ] Relay Carrier On Upper Vehicle Electrical System Control Module, For My 12 Only

3 - Relay Carrier on lower Vehicle Electrical System Control Module
• Under the instrument panel on the driver side, next to the steering column
• Component location (MY 10) => [ Relay carrier on upper/lower vehicle electrical system control module, for MY 10 only ] Relay Carrier On Upper/lower Vehicle Electrical System Control Module,for MY 10 Only
• Component location (MY 11) => [ Relay carrier on vehicle electrical system control module, from MY 11 ] Relay Carrier On Vehicle Electrical System Control Module, From MY11
• Relay arrangement (MY 10) => [ Relay carrier on lower vehicle electrical system control module , for MY 10 only ] Relay Carrier On Upper/lower Vehicle Electrical System Control Module,for MY 10 Only
• Relay arrangement (MY 11) => [ Relay carrier on lower vehicle electrical system control module, for MY 11 only ] Relay Carrier On Vehicle Electrical System Control Module, From MY11
• Relay arrangement (MY 12) => [ Relay carrier on lower vehicle electrical system control module, for MY 12 only ] Relay Carrier On Lower Vehicle Electrical System Control Module, For My 12 Only

4 - Automatic glow time control module -J179-
• Diesel engines only
• Auxiliary Relay Carrier under Electronics Box
• Component location => [ ] Automatic Glow Time Control Module -J179-

5 - Battery monitoring control module -J367-
• On the ground cable battery terminal clamp
• Only for vehicles with Start/Stop system
• Component location => [ ] Battery Monitoring Control Module -J367-

6 - Voltage stabilizer -J532-
• Inside the instrument panel, behind the glove compartment
• Component location => [ ] Voltage Stabilizer -J532-
