Instrument Panel Control Module: Locations
Control modules in interior

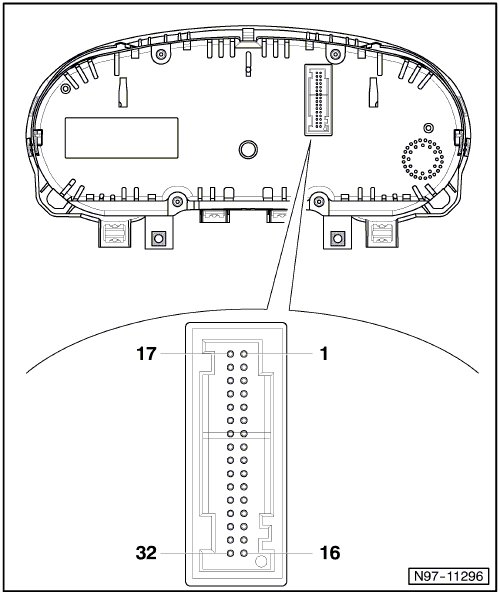

Instrument cluster control module -J285-
Connector:
A - Instrument cluster control module -J285-
Connector:
1 - Transfer fuel pump -G6- / fuel pump control module -J538-
2 - Fuel level sensor -G- / fuel pump control module -J538-
3 - A/C compressor temperature sensor -G619-
4 - A/C compressor temperature sensor -G619-
5 - Not used
6 - Not used
7 - Anti-theft immobilizer reader coil -D2-
8 - Anti-theft immobilizer reader coil -D2-
9 - Not used
10 - Not used
11 - Oil level thermal sensor -G266-
12 - Not used
13 - Not used
14 - Not used
15 - Left front brake pad wear sensor -G34-
16 - Ground connection 2 (in main wiring harness) -367-
17 - Windshield washer fluid level sensor -G33-
18 - Engine coolant level sensor -G32-
19 - Outside air temperature sensor -G17-
20 - (Sensor ground) connection 1 in the main wiring harness -410-
21 - Not used
22 - Not used
23 - Not used
24 - Not used
25 - Parking brake indicator lamp switch -F9-
26 - Brake fluid level warning switch -F34-
27 - Oil pressure switch -F1-
28 - Data bus on board diagnostic interface -J533-
29 - Data bus on board diagnostic interface -J533-
30 - Not used
31 - Positive connection 4 (15a) in instrument panel wiring harness -A199-
32 - Connection (30al) inside the instrument panel wiring harness -A23-
