Towing Module: Locations







Control modules in interior

Towing recognition control module -J345-

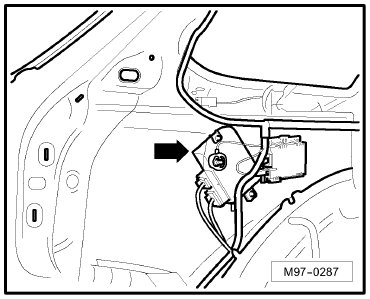

Component Location:
In rear left side panel -Arrow-


Connector:







A - Towing recognition control module -J345-
Connector:

B - 16-pin connector -T16i- inside the wiring harness

C - 12-pin connector -T12h- inside the wiring harness
