Parking Aid, Without Park Assist

Control modules in interior

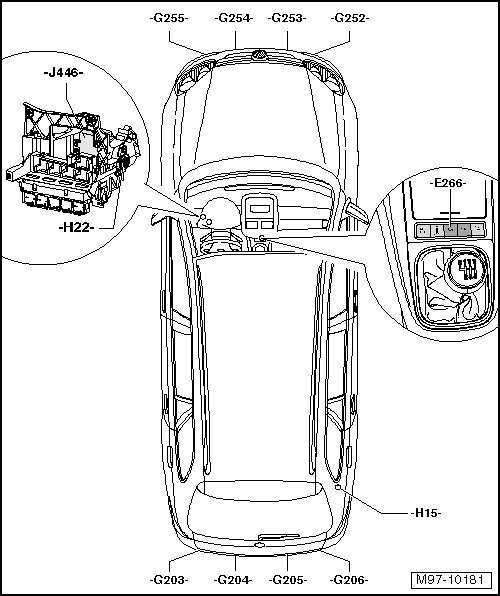

Parking aid, without park assist







1 - Parking aid control module -J446-
Warning buzzers:

2 - Front parking aid warning buzzer -H22-

3 - Rear parking aid warning buzzer -H15-
Buttons:

4 - Parking aid button -E266-
Sensors:

5 - Front parking aid sensor
• Right front parking aid sensor -G252-
• Right front center parking aid sensor -G253-
• Left front center parking aid sensor -G254-
• Left front parking aid sensor -G255-

6 - Rear parking aid sensor
• Left rear parking aid sensor -G203-
• Left rear center parking aid sensor -G204-
• Right rear center parking aid sensor -G205-
• Right rear parking aid sensor -G206-
