Parking Aid, With Park Assist

Control modules in interior

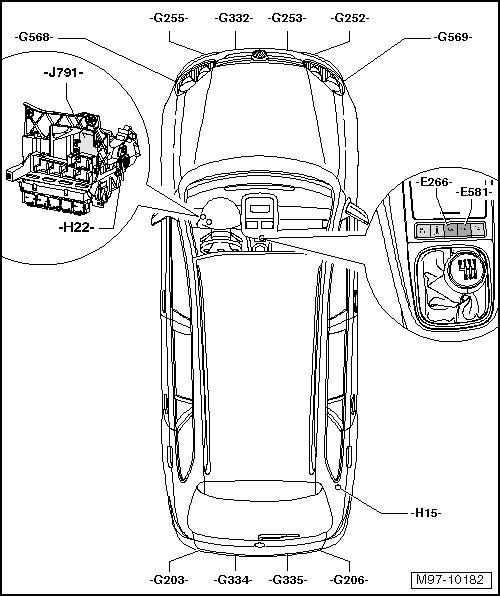

Parking aid, with park assist







1 - Parallel parking assistance control module -J791-
Warning buzzers:

2 - Front parking aid warning buzzer -H22-

3 - Rear parking aid warning buzzer -H15-
Buttons:

4 - Parking aid button -E266-

5 - Parallel parking assistance button -E581-
Sensors:

6 - Front parking aid sensor
• Right front parking aid sensor -G252-
• Right front center parking aid sensor -G253-
• Left front center parking aid sensor -G254-
• Left front parking aid sensor -G255-
• Left front parallel parking assistance sensor -G568-
• Right front parallel parking assistance sensor -G569-

7 - Rear parking aid sensor
• Left rear parking aid sensor -G203-
• Left rear center parking aid sensor -G204-
• Right rear center parking aid sensor -G205-
• Right rear parking aid sensor -G206-
