Parking Aid Control Module -J446-

Control modules in interior

Parking aid control module -J446-







Parking aid, without park assist

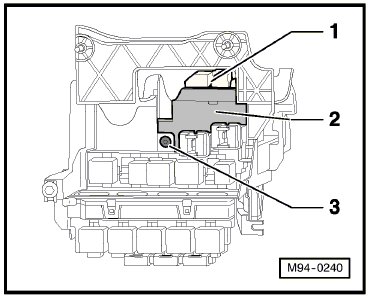

Component Location:
• Under instrument panel, left, behind relay carrier at the vehicle electrical
system control module (BCM) -2-

• Connector on parking aid control module -J446- -1-

• Screw -3-



Connector:







A - Parking aid control module -J446-
Connector:

B - 16-pin connector -T16c- inside the wiring harness

C - 12-pin connector -T12- inside the wiring harness

D - 12-pin connector -T12a- inside the wiring harness, from July 2009

D - 12-pin connector -T12w- inside the wiring harness, from July 2010
