Parallel Parking Assistance Control Module -J791-







Control modules in interior

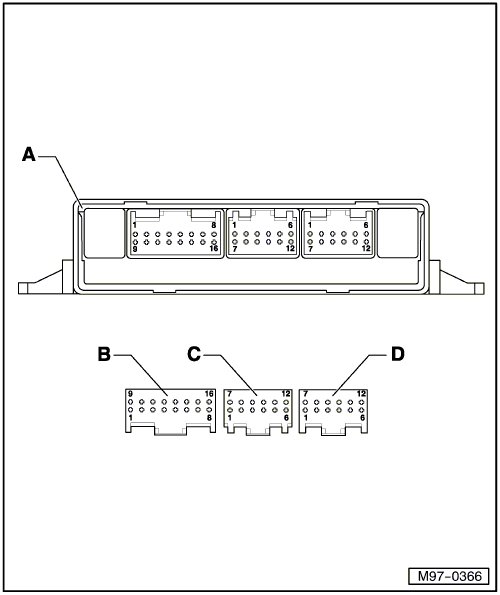

Parallel parking assistance control module -J791-




Connector:







A - Parallel parking assistance control module -J791-
Connector:

B - 16-pin connector -T16c- inside the wiring harness

C - 12-pin connector -T12- inside the wiring harness

D - 12-pin connector -T12a- inside the wiring harness, from July 2009

D - 12-pin connector -T12w- inside the wiring harness, from July 2010
