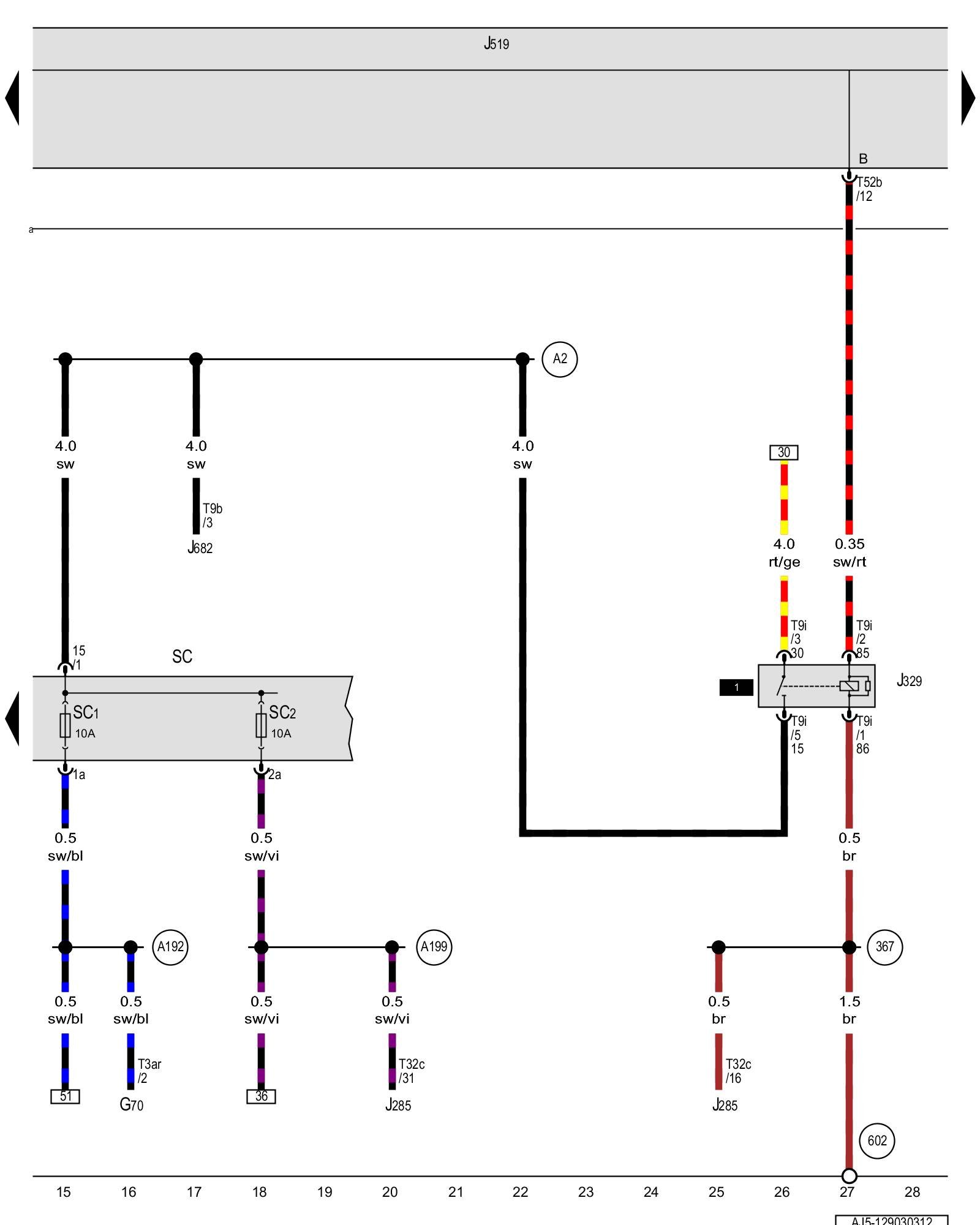

Diagram 129/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 15 power supply relay, Vehicle electrical system control module, Fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G70 - Mass airflow sensor Locations [1][2]Air Flow Meter/Sensor

J285 - Instrument cluster control module

J329 - Terminal 15 power supply relay Locations

J519 - Vehicle electrical system control module Locations

J682 - Terminal 50 power supply relay Locations Locations

SC - Fuse panel C

SC1 - Fuse 1 (on fuse panel C)

SC2 - Fuse 2 (on fuse panel C)

T3ar - 3-pin connector

T9b - 9-pin connector

T9i - 9-pin connector

T32c - 32-pin connector

T52b - 52-pin connector

(367) - Ground connection 2 (in main wiring harness)

(602) - Ground connection in left front footwell Locations

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A192) - Positive connection 3 (15a) (in instrument panel wiring harness)

(A199) - Positive connection 4 (15a) (in instrument panel wiring harness)
