Battery Monitoring Control Module -J367-







Relay

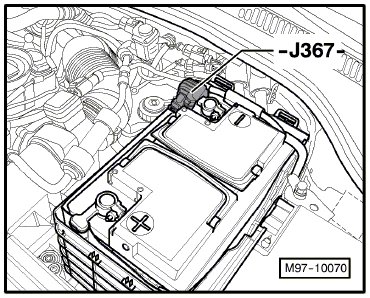

Battery monitoring control module -J367-







Component Location:
On the ground cable battery terminal clamp
• Only for vehicles with Start/Stop system
