Overview Of Ground Connections

Ground Connections

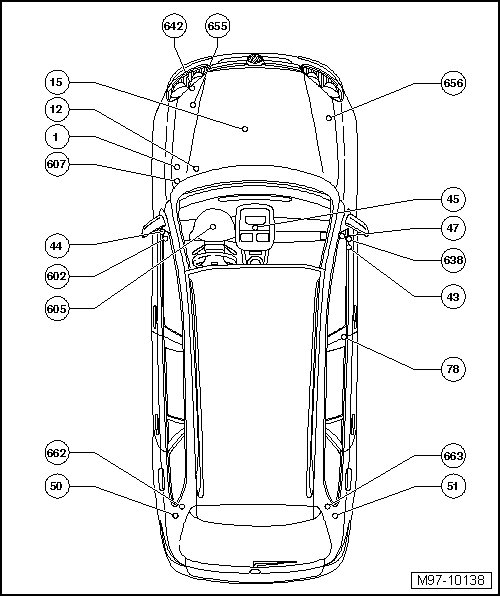

Overview of Ground Connections







(1) - Ground strap, battery to body
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment

(12) - Ground connection inside the engine compartment on the left side
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment

(15) - Ground connection on cylinder head
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment

(43) - Ground connection on A-pillar, lower right
• Tightening specification: 9 Nm
• Component location => [ ] 801003

(44) - Ground connection on A-pillar, lower left
• Tightening specification: 9 Nm
• Component location => [ ] 801003

(45) - Ground connection behind instrument panel, center
• Tightening specification: 9 Nm
• Component location => [ ] 801004

(47) - Ground connection in right front footwell
• Tightening specification: 9 Nm
• Component location => [ ] 801003

(50) - Ground connection inside the luggage compartment on the left side
• Tightening specification: 9 Nm
• Component location => [ ] Ground Point Inside The Luggage Compartment

(51) - Ground connection inside the luggage compartment on the right side
• Tightening specification: 9 Nm
• Component location => [ ] Ground Point Inside The Luggage Compartment

(78) - Ground connection on B-pillar, lower right
• Tightening specification: 9 Nm
• Component location => [ ] 801004

(602) - Ground connection inside the left front footwell
• Tightening specification: 9 Nm
• Component Location => [ ] 801003

(605) - Ground connection on upper steering column
• Tightening specification: 9 Nm
• Component location => [ ] 801004

(607) - Ground connection in plenum chamber, left
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment

(638) - Ground point on the right A-pillar
• Tightening specification: 9 Nm
• Component location => [ ] 801003

(642) - Electronic fan control ground connection
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment

(655) - Ground connection on the left headlamp
• Tightening specification: 9 Nm
• Component location => [ ] Ground Connections In Engine Compartment
