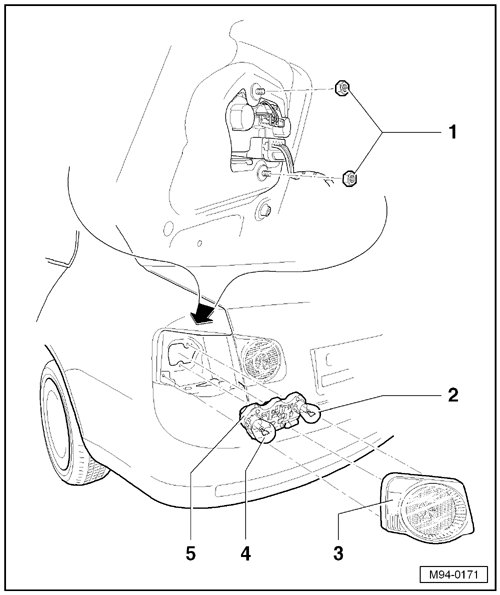

Side Panel Tail Lamps, LED Overview







Side Panel Tail Lamps, LED Overview






1 Nut

• 3.5 Nm

2 LED

3 Tail Lamps In Side Panel

4 LED

5 Bulb Holder
