Left Front Side Marker Lamp Bulb (M33)/Right Front Side Marker Lamp Bulb (M34)

Left Front Side Marker Lamp Bulb (M33)/Right Front Side Marker Lamp Bulb (M34)

Removing and installing the left front side marker lamp bulb / right front side marker lamp bulb is identical.

Removal


• Switch off the ignition and all electrical consumers.

• Remove the key.

- Remove the noise insulation.

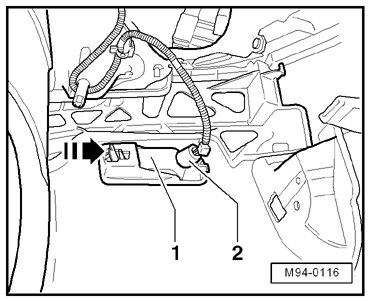

- Press the tabs in the - direction of the arrow - and release the side marker lamp - 1 -.






- Pull the bulb socket - 2 - out of the side marker lamp.

Left Front Side Marker Lamp / Right Front Side Marker Lamp , replacing

- Remove the left front side marker lamp bulb - 1 - from the bulb socket - 2 - in - direction of arrow -






Installation


• Do not touch the glass of the bulb during installation. Fingers will leave traces of grease on the glass which, when the light is switched on, will evaporate and cloud the glass.

Installation is performed in the reverse order of removal. Note the following:

- Make sure the bulb operates.
