Front Passenger Airbag -disabled- Indicator Lamp (K145)

Front Passenger Airbag -disabled- Indicator Lamp (K145)

Special tools, testers and auxiliary items required

• Trim Removal Wedge (VAS 3409)


Read all the Safety Precautions before working on the airbag.


• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removal

- Remove the center vents.

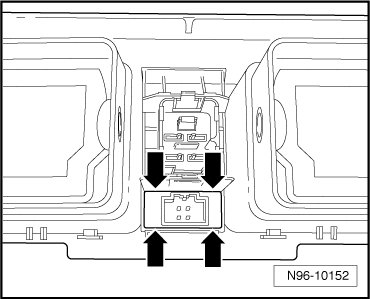

- Release and disconnect the harness connectors - arrows -.






- Release the tabs - arrows - and remove the front passenger airbag disabled indicator lamp.






Installation

Installation is performed in the reverse order of removal.
