A/C Compressor Sub-Assembly Bracket, Engine Codes BGP and BGQ

A/C Compressor Sub-Assembly Bracket, Engine Codes BGP and BGQ

Special tools, testers and auxiliary items required

• Torque Wrench (V.A.G 1331/) (5 to 50 Nm)

• The bracket for A/C compressor and ancillary parts can be removed and installed without opening the refrigerant circuit.

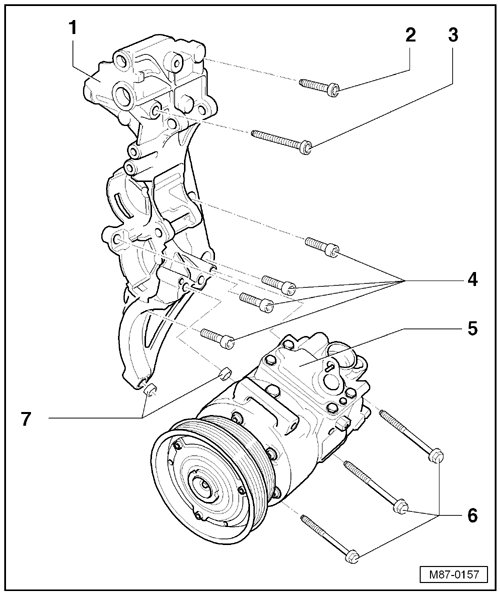

1 Sub-assembly Bracket For The Generator and A/C Compressor

• Number on the auxiliary component bracket (07K 903 143 B)

Removing

- Loosen A/C compressor, unscrew hex-bolts - 6 -. Remove A/C compressor from auxiliary component bracket and secure to body with appropriate material (for example, welding wire).

- Remove the bolts - 2, 3 and 4 - and the auxiliary component bracket - 1 - from the cylinder block.

2 M8 x 60 Internal Multi-Point Bolt

• 25 Nm

3 M8 x 110 Internal Multi-Point Bolt

• 25 Nm

4 M8 x 30 Hex Socket Head Bolts

• 25 Nm

• Quantity: 4

5 A/C Compressor

• Removing and installing, refer to => [ A/C Compressor ] Service and Repair.

6 Hex Bolts M8x85

• 25 Nm

• Quantity: 3

7 Dowel Sleeves

• Quantity: 2

• Make sure they fit correctly between the auxiliary component bracket and the A/C compressor.

Securing A/C compressor to body

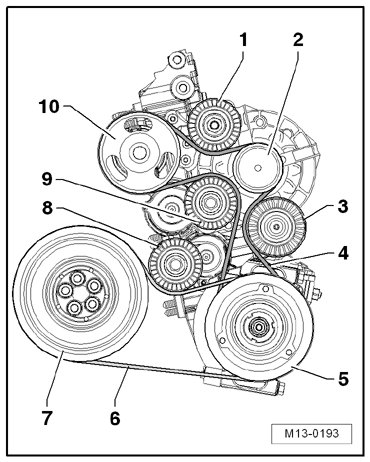

Ribbed Belt Routing





1. Idler roller, top

2. Generator pulley

3. Idler roller, bottom

4. Ribbed belt for the generator and coolant pump

5. A/C compressor belt pulley

6. Ribbed belt for A/C compressor

7. Crankshaft belt pulley

8. A/C compressor ribbed belt tensioning roller

9. Ribbed belt tensioning roller for the generator and coolant pump

10. Coolant pump belt pulley
