Center Vent

Center Vent

Removing

- If the vehicle has Climatronic, remove the photosensor. Refer to => [ Sunlight Photo Sensor (G107) or Sunlight Photo Sensor 2 (G134) ] Service and Repair.

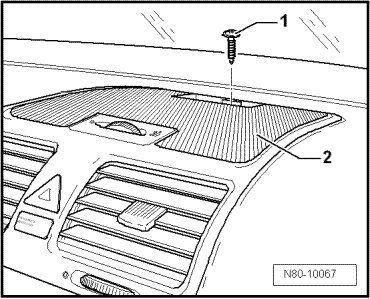

- Remove the bolt - 1 -.






- If the vehicle has Climatronic, remove the cover - 2 -.

• In vehicles without Climatronic, bolts are under a trim mat.

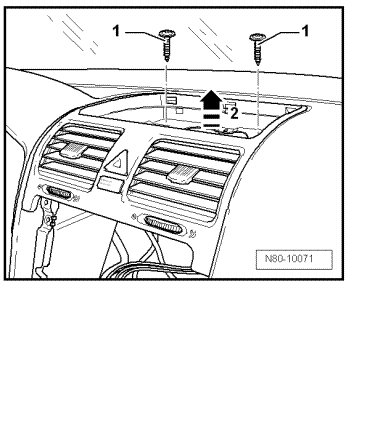

- Remove nuts - 1 -.






- Remove storage compartment from instrument panel.

- Remove the center vent - 2 - in - direction of arrow -.

- Disconnect the connectors from the center vents.

Installing

Install in reverse order of removal.
