Engine Lubrication: Specifications

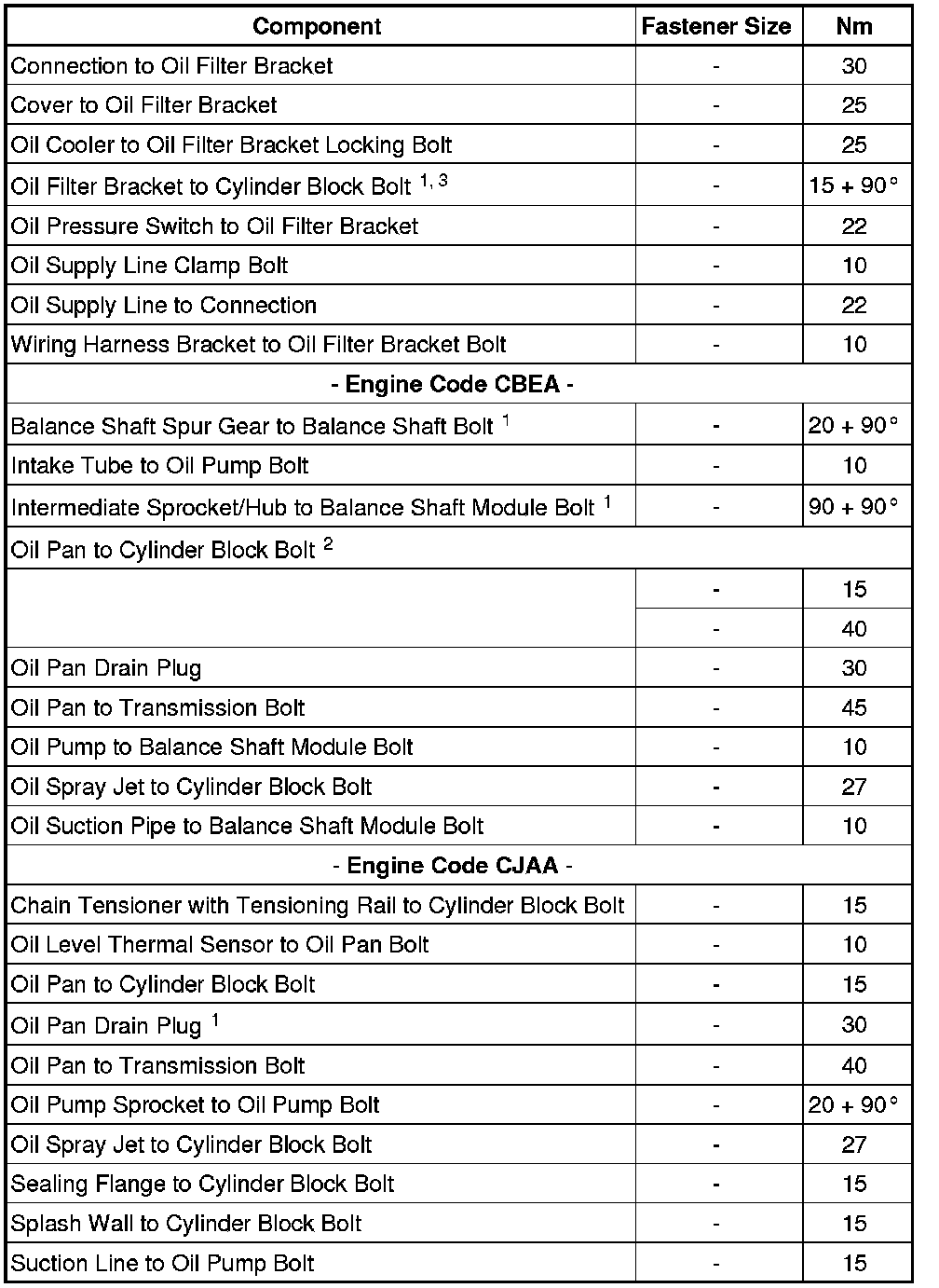

Fastener Tightening Specifications






• 1 Always replace

• 3 First, tighten the upper left and lower right bolts, and then tighten all four bolts in a diagonal sequence.
