Connecting Rod: Specifications

Connecting Rod

Bolt
30 Nm + an additional 90° (1/4) turn.
Always replace.
Lubricate the threads and contact surface.
Use a old bolt to measure radial play.

Axial play:
Wear limit 0.37 mm

Measure the radial play using Plastigage(R):
Wear limit: 0.08 mm

Do not rotate the crankshaft when measuring radial play.

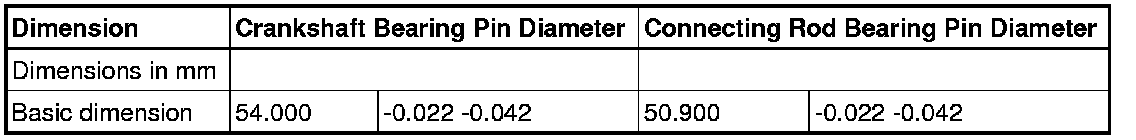

Crankshaft Dimensions
